T0054460199N

Active

Apex Tool Group

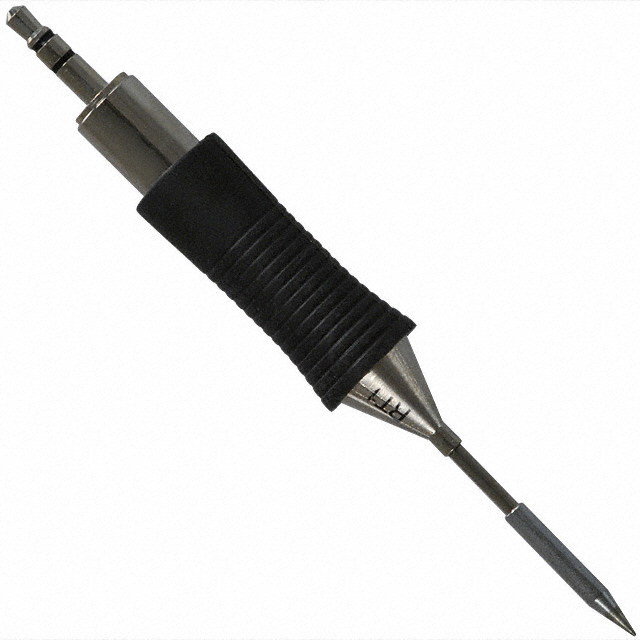

TIP RT1 NEEDLE TIP

Search across all available documentation for this part.

Active

Apex Tool Group

TIP RT1 NEEDLE TIP

Technical Specifications

Parameters and characteristics for this part

Specification	T0054460199N

Diameter [diameter]	0.2 mm
Diameter [diameter]	0.008 in
For Use With/Related Products	WXMP, WMRP-MS, WXMP-MS, WMRP
Tip Shape	Needle
Tip Type	Soldering

Part	Height [z]	Height [z]	Tip Type	Width [y]	Width [y]	For Use With/Related Products	Tip Shape	Width [x]	Width [x]	Width	Width	Diameter	Diameter	Diameter [diameter]	Diameter [diameter]
Apex Tool Group T0054460399N	0.016 in	0.4 mm	Soldering	0.05 in	1.28 mm	WMRP WMRP-MS WXMP WXMP-MS	Chisel
Apex Tool Group T0054460799N			Soldering			WMRP WMRP-MS WXMP WXMP-MS	Knife	2.2 mm	0.087 in
Apex Tool Group T0054460999N	0.016 in	0.4 mm	Soldering			WMRP WMRP-MS WXMP WXMP-MS	Chisel			0.8 mm	0.031 in
Apex Tool Group T0054460299N			Soldering			WMRP WMRP-MS WXMP WXMP-MS	Conical					0.8 mm	0.031 in
Apex Tool Group T0054460199N			Soldering			WMRP WMRP-MS WXMP WXMP-MS	Needle							0.2 mm	0.008 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TIP RT1 NEEDLE TIP

Technical documentation and resources
