5P49V6965A000NLGI8

Active

Renesas Electronics Corporation

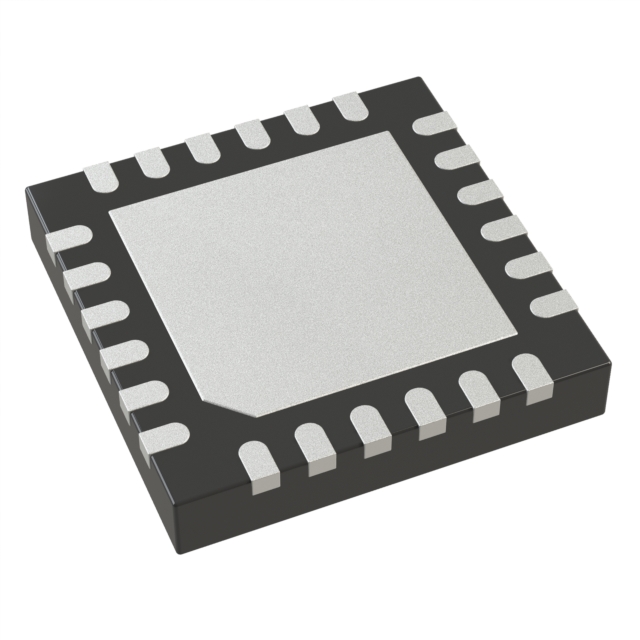

IC CLOCK GENERATOR 24QFN

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC CLOCK GENERATOR 24QFN

Technical Specifications

Parameters and characteristics for this part

Specification	5P49V6965A000NLGI8

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	350 MHz
Input	LVDS, LVCMOS, HCSL, LVPECL, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, HCSL, LVPECL, LVDS
Package / Case	24-VFQFN Exposed Pad
PLL	Yes with Bypass
Ratio - Input:Output [custom]	2:4
Supplier Device Package	24-QFN (4x4)
Type	Clock Generator
Voltage - Supply [Max]	3.465 V, 2.625 V, 1.89 V
Voltage - Supply [Min]	2.375 V, 1.71 V, 3.135 V

Part	Contents	Function	Utilized IC / Part	Type	Supplied Contents	Output	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Divider/Multiplier	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Input	Frequency - Max [Max]	Ratio - Input:Output [custom]	Supplier Device Package	PLL	Number of Circuits	Mounting Type
Renesas Electronics Corporation 5P49V6965-EVKAC	Board(s)	Clock Generator	5P49V6965	Timing	Board(s)
Renesas Electronics Corporation 5P49V6965A000NLGI8				Clock Generator		HCSL LVCMOS LVDS LVPECL	24-VFQFN Exposed Pad	85 °C	-40 °C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Yes/No			Crystal HCSL LVCMOS LVDS LVPECL	350 MHz	2:4	24-QFN (4x4)	Yes with Bypass	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clock Generator IC 350MHz 1 24-VFQFN Exposed Pad
