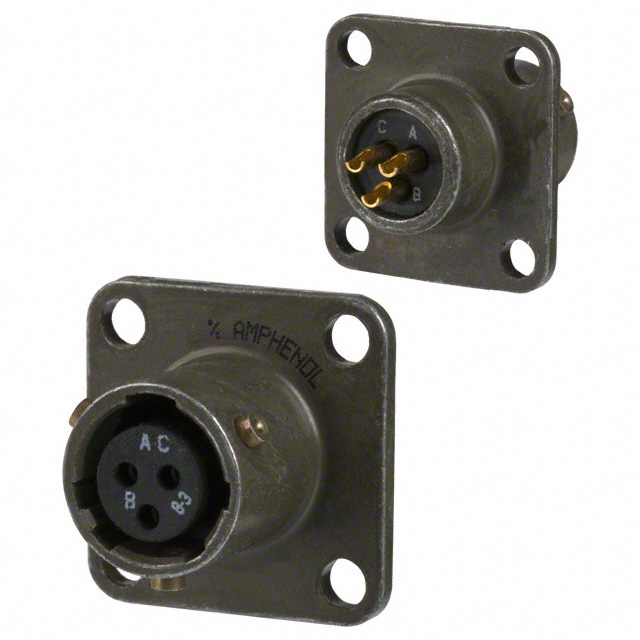

MS3112E8-3S

Unknown

Amphenol Industrial Operations

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3112E8-3S

Unknown

Amphenol Industrial Operations

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E8-3S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-3
Shielding	Unshielded

MS3112E8 Series

Part	Color	Shielding	Qualification	Primary Material	Shell Material	Contact Material	Orientation	Number of Positions	Insert Material	Shell Size - Insert	Fastening Type	Mounting Feature	Connector Type	Grade	Shell Finish	Applications	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
Amphenol Industrial Operations MS3112E8-2S	Olive Drab	Unshielded	MIL-DTL-26482 Series I	Metal	Aluminum	Copper Alloy	N	2	Neoprene	8-2	Bayonet Lock	Flange	Receptacle Female Sockets	Military	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	-55 °C	125 °C	Environment Resistant
Amphenol Industrial Operations MS3112E8-4SY	Olive Drab	Unshielded	MIL-DTL-26482 Series I	Metal	Aluminum	Copper Alloy	Y	4	Neoprene	8-4	Bayonet Lock	Flange	Receptacle Female Sockets	Military	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	-55 °C	125 °C	Environment Resistant
Amphenol Industrial Operations MS3112E8-3P	Olive Drab	Unshielded	MIL-DTL-26482 Series I	Metal	Aluminum	Copper Alloy	N		Neoprene	8-3	Bayonet Lock	Flange	Male Pins Receptacle	Military	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	-55 °C	125 °C	Environment Resistant
Amphenol Industrial Operations MS3112E8-2P	Olive Drab	Unshielded	MIL-DTL-26482 Series I	Metal	Aluminum	Copper Alloy	N	2	Neoprene	8-2	Bayonet Lock	Flange	Male Pins Receptacle	Military	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	-55 °C	125 °C	Environment Resistant
Amphenol Industrial Operations MS3112E8-3S	Olive Drab	Unshielded	MIL-DTL-26482 Series I	Metal	Aluminum	Copper Alloy	N		Neoprene	8-3	Bayonet Lock	Flange	Receptacle Female Sockets	Military	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	-55 °C	125 °C	Environment Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.53
		1	$ 35.89
		10	$ 31.43
		10	$ 32.90
		25	$ 30.07
		25	$ 29.84
		50	$ 27.78
		100	$ 25.91
		250	$ 23.71

Description

General part information

MS3112E8 Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
