78M6618-PDU-1

Unknown

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR 78M6618

Search across all available documentation for this part.

Unknown

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR 78M6618

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Voltage - I/O High	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Meter Type	Voltage - I/O Low	Mounting Type	Input Impedance [Max]	Input Impedance [Min]	Measurement Error	Function	Type	Utilized IC / Part	Contents	Supplied Contents
Analog Devices Inc./Maxim Integrated 78M6618-M/F/P2	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-IMR/F	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-MR/F/P2	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-MR/F/P1	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-IM/F	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-M/F/P1	68-SQFN (8x8)	2 V	3 V	3.6 V	85 °C	-40 °C	68-VFQFN Exposed Pad	Single Phase	0.8 V	Surface Mount	90 kOhm	40 kOhm	0.5 %
Analog Devices Inc./Maxim Integrated 78M6618-PDU-1														Energy/Power Meter	Power Management	78M6618	Board(s) Cable(s) Power Supply
Analog Devices Inc./Maxim Integrated 78M6618-SOCKET68														Energy/Power Meter	Power Management	78M6618		Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 482.28

General part information

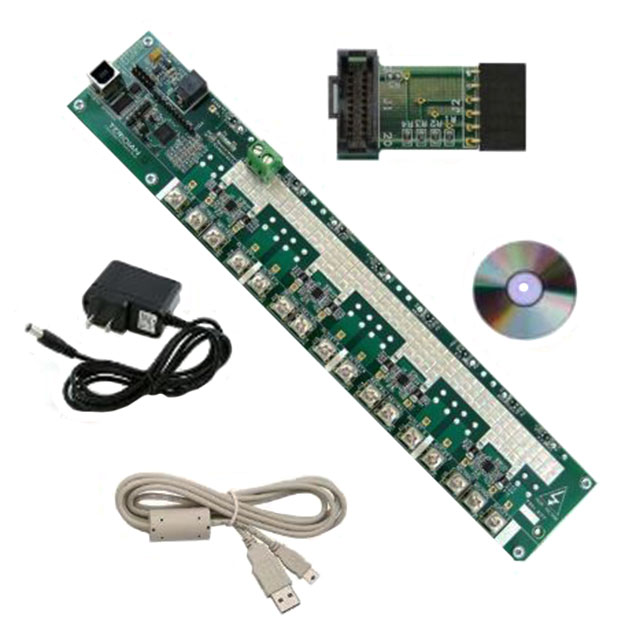

78M6618 - Energy/Power Meter Power Management Evaluation Board
