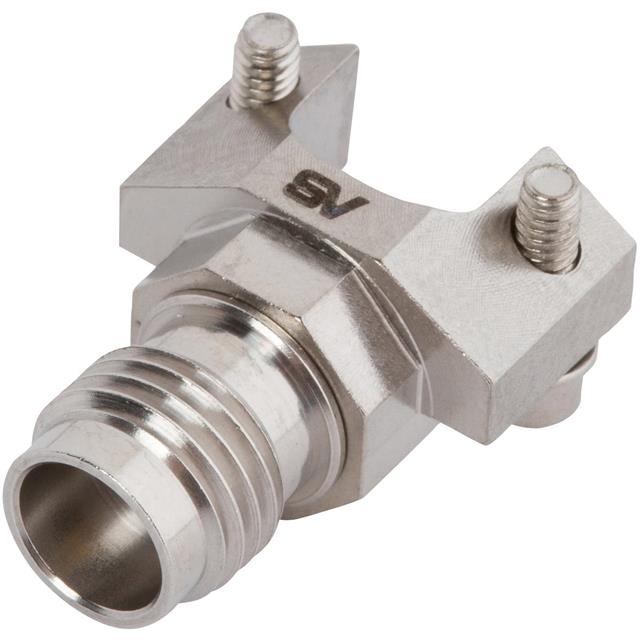

SF3321-60021

Active

Amphenol SV Microwave

CONN 1.85MM JCK STR 50OHM EDGEMT

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN 1.85MM JCK STR 50OHM EDGEMT

Technical Specifications

Parameters and characteristics for this part

Part	Includes	Center Contact Material	Mounting Feature	Body Material	Center Contact Plating	Mating Cycles	Frequency - Max [Max]	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Number of Ports	Cable Group	Cable Group	Connector Style	Connector Type	Shield Termination	Mounting Type	Insertion Loss	Features
Amphenol SV Microwave SF3321-60004	1 Connector 1 Lockwasher 1 Nut	Beryllium Copper	Bulkhead - Front Side Nut	Stainless Steel	Gold	500	65 GHz	Solder	-55 °C	125 °C	50 Ohms	Silver	1	Flexible	0.047 in	1.85 mm	Female Socket Jack	Solder
Amphenol SV Microwave SF3321-60018-1S		Beryllium Copper	Flange	Stainless Steel	Gold	500	67 GHz	Compression	-65 ░C	165 °C	50 Ohms		1			1.85 mm	Female Socket Jack	Screw	Surface Mount	0.41 dB	Flange
Amphenol SV Microwave SF3321-60003		Beryllium Copper	Flange	Stainless Steel	Gold	500	65 GHz	Compression	-55 °C	125 °C	50 Ohms	Silver	1			1.85 mm	Female Socket Jack	Screw
Amphenol SV Microwave SF3321-60040	1 Connector 2 Screws	Beryllium Copper		Stainless Steel	Gold	500	67 GHz	Compression	-65 ░C	165 °C	50 Ohms	Silver	1			1.85 mm	Female Socket Jack	Screw	Board Edge End Launch	0.327 dB	Mounting Hardware
Amphenol SV Microwave SF3321-60018-2S		Beryllium Copper	Flange	Stainless Steel	Gold	500	67 GHz	Compression	-65 ░C	165 °C	50 Ohms		1			1.85 mm	Female Socket Jack	Screw	Surface Mount	0.41 dB	Flange
Amphenol SV Microwave SF3321-60021	1 Connector 2 Screws				Gold	500		Compression	-65 ░C	165 °C	50 Ohms					1.85 mm	Female Socket Jack	Screw	Board Edge End Launch		Mounting Hardware

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
