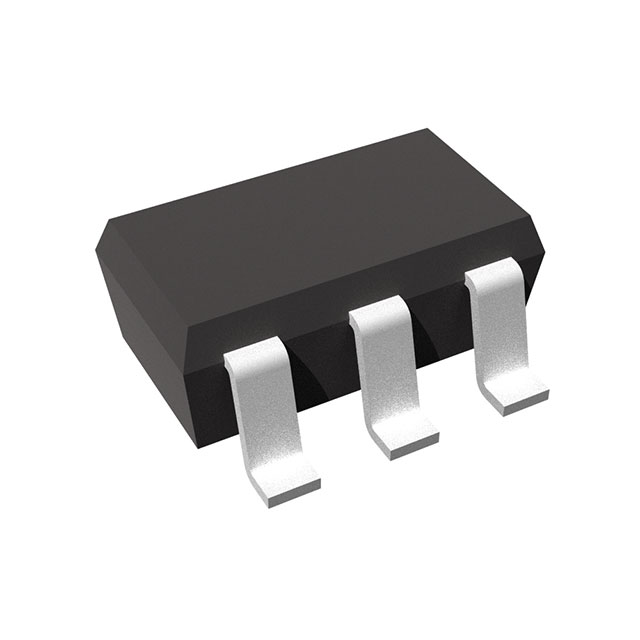

RP152N002B-TR-FE

Active

Nisshinbo Micro Devices Inc

IC REG LIN 1.8V/2.8V 150MA SOT23

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP152N002B-TR-FE

Active

Nisshinbo Micro Devices Inc

IC REG LIN 1.8V/2.8V 150MA SOT23

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP152N002B-TR-FE

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	60 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SOT-23-6
Protection Features	Over Current
PSRR	70 dB
Supplier Device Package	SOT-23-6
Voltage - Input (Max) [Max]	5.25 V
Voltage - Output (Min/Fixed)	1.8 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max) [Max]	0.46 V, 0.35 V

RP152 Series

Part	Package / Case	Output Type	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Output Configuration	Protection Features	Number of Regulators	PSRR	Control Features	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)	Voltage Dropout (Max)	Voltage Dropout (Max) [Min]
Nisshinbo Micro Devices Inc RP152L007B-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.35 V	2.85 V	2.85 V	5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6
Nisshinbo Micro Devices Inc RP152L008B-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.35 V	2.85 V	2.6 V	5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6
Nisshinbo Micro Devices Inc RP152L039B-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.32 V 0.39 V			5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	2.1 V 3.3 V
Nisshinbo Micro Devices Inc RP152L027B-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA				5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	2.3 V 2.8 V	0.35 V 0.39 V
Nisshinbo Micro Devices Inc RP152L041C-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.32 V 0.46 V			5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	1.8 V 3 V
Nisshinbo Micro Devices Inc RP152L002C-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.35 V 0.46 V			5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	1.8 V		2.8 V
Nisshinbo Micro Devices Inc RP152L048B-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA				5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	2.5 V 3.2 V			0.32 V	0.35 V
Nisshinbo Micro Devices Inc RP152L005C-TR	6-XFDFN Exposed Pad	1.81 mOhm	60 µA	0.62 V			5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	DFN1212-6	3.3 V		1.2 V			0.32 V
Nisshinbo Micro Devices Inc RP152N002B-TR-FE	SOT-23-6	1.81 mOhm	60 µA	0.35 V 0.46 V			5.25 V	Surface Mount	Positive	Over Current	2	70 dB	Enable	150 mA	85 °C	-40 °C	SOT-23-6	1.8 V		2.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.41
		6000	$ 0.39
		15000	$ 0.37

Description

General part information

RP152 Series

Linear Voltage Regulator IC Positive Fixed 2 Output 150mA, 150mA SOT-23-6
