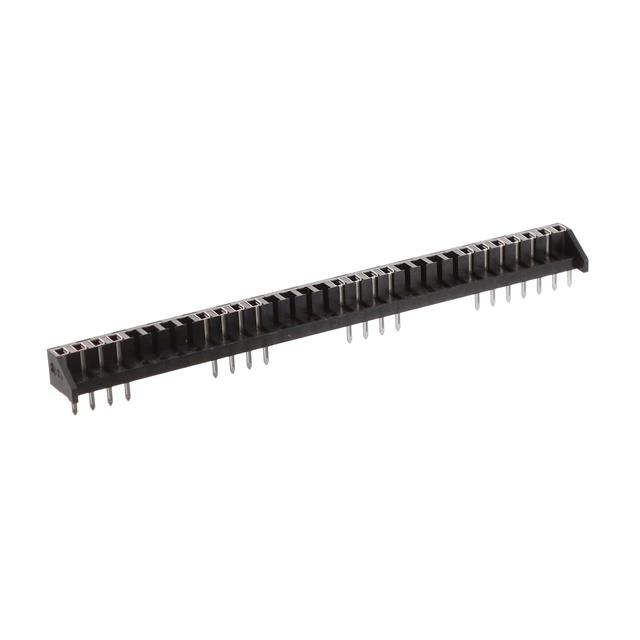

MA49-19S-2.54DSA

Active

Hirose Electric USA, Inc.

CONN SOCKET 2.54MM GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SOCKET 2.54MM GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	MA49-19S-2.54DSA

Connector/Contact Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Current Rating (Amps)	3 A
Flat Flex Type	FPC
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mating Cycles	50
Mounting Type	Surface Mount
Number of Positions	19
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions	Material Flammability Rating	Mounting Type	Flat Flex Type	Termination	Housing Material	Contact Material	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish	Mating Cycles	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector/Contact Type	Housing Color
Hirose Electric USA, Inc. MA49-19S-2.54DSA(01)	19	UL94 V-0	Surface Mount	FPC	Solder	Polybutylene Terephthalate (PBT)	Phosphor Bronze	5 mm	0.197 in	2.54 mm	0.1 in	Gold	50	250 VDC	8 çin	0.203 çm	85 °C	-55 °C	3 A	Receptacle	Black
Hirose Electric USA, Inc. MA49-19S-2.54DSA	19	UL94 V-0	Surface Mount	FPC	Solder	Polybutylene Terephthalate (PBT)	Phosphor Bronze			2.54 mm	0.1 in	Gold	50	250 VDC	8 çin	0.203 çm	85 °C	-55 °C	3 A	Receptacle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position FPC Connector Receptacle 0.100" (2.54mm) Surface Mount

Technical documentation and resources

No documents available
