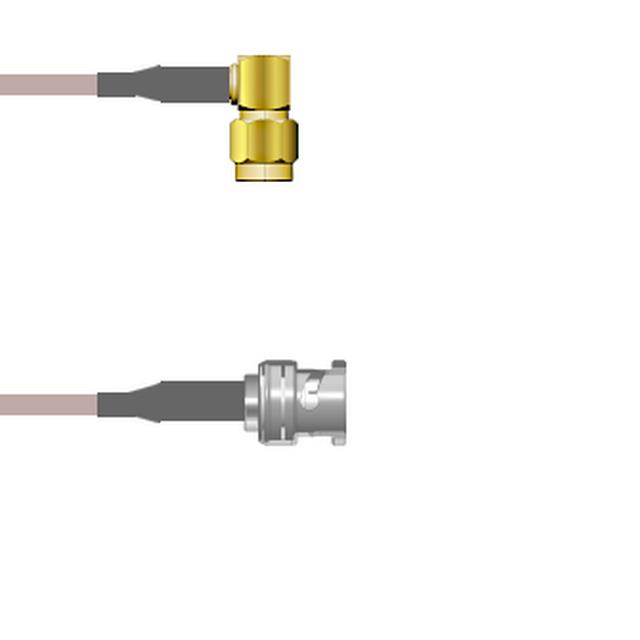

Q-3500K000R018I

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 18"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 18"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3500K000R018I

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	Length [x]	Length [x]	1st Contact Gender	1st Connector	Color	Style	Cable Type	2nd Contact Gender	Connector Impedance	Overall Impedance	Features	Frequency - Max [Max]	2nd Connector Mounting Feature	2nd Connector	Cable Impedance	2nd Connector Mounting Type	1st Connector Mounting Type
Amphenol Custom Cable Q-3500K000R018I	457.2 mm	457.2 mm	Male	BNC Plug	Copper	BNC to SMA	RG-316 DS	Male	50 Ohms	50 Ohms	Shielded	3 GHz	Bulkhead - Front Side Nut	SMA Plug Right Angle	50 Ohms	Panel Mount	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial BNC to SMA RG-316 DS 18.00" (457.20mm)
