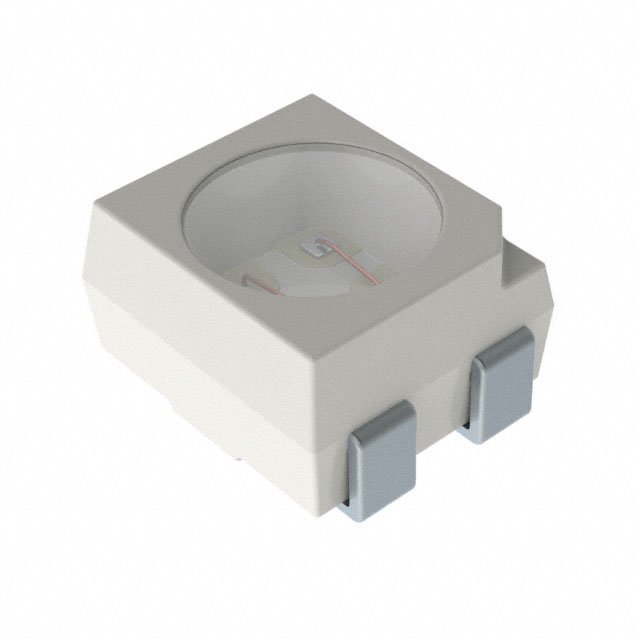

LAY T67B-T2V1-1-1+U2V2-45-1-50-R18-Z
Obsoleteams-OSRAM USA INC.
LED AMBER/YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LAY T67B-T2V1-1-1+U2V2-45-1-50-R18-Z
Obsoleteams-OSRAM USA INC.
LED AMBER/YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LAY T67B-T2V1-1-1+U2V2-45-1-50-R18-Z |
|---|---|
| Color | Amber, Yellow |
| Configuration | Independent |
| Current - Test | 50 mA, 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2.2 V |
| Wavelength - Dominant | 587 nm, 617 nm |
| Wavelength - Peak | 624 nm, 594 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
Description
General part information
LAYT67B Series
Amber, Yellow 617nm Amber, 587nm Yellow LED Indication - Discrete 2.1V Amber, 2.2V Yellow 4-PLCC
