Q-39026000M1.5M

Active

Amphenol Custom Cable

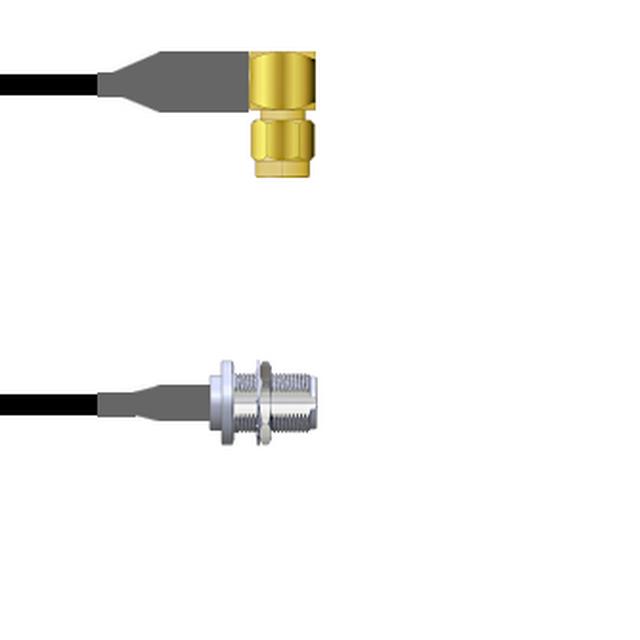

CBL ASSY SMA-NTYPE PLG-JACK 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLG-JACK 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-39026000M1.5M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	2nd Connector	Cable Type	Color	Features	2nd Contact Gender	Cable Impedance	Connector Impedance	1st Contact Gender	1st Connector	Overall Impedance	Style	2nd Connector Mounting Feature
Amphenol Custom Cable Q-39026000M1.5M	Free Hanging (In-Line)	Panel Mount	6000 MHz	59.1 in	4.9 ft	1.5 m	N-Type Jack	LMR 240	Black	Shielded	Female	50 Ohms	50 Ohms	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type LMR 240 59.1" (1.5m) 4.9'
