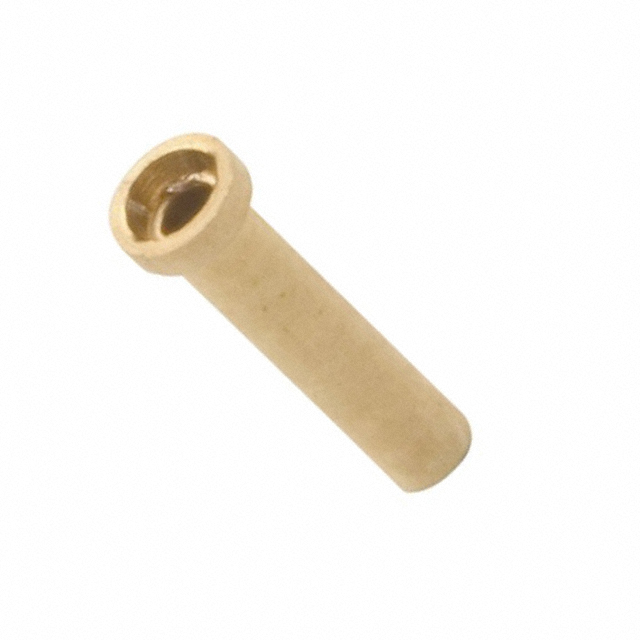

H3191-05
ActiveHarwin Inc.
CONN PIN RCPT .018-.020 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
H3191-05
ActiveHarwin Inc.
CONN PIN RCPT .018-.020 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3191-05 |
|---|---|
| Accepts Pin Diameter [Max] | 0.51 mm |
| Accepts Pin Diameter [Max] | 0.02 in |
| Accepts Pin Diameter [Min] | 0.46 mm |
| Accepts Pin Diameter [Min] | 0.018 in |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.45 mm |
| Flange Diameter [diameter] | 0.057 in |
| Insertion Force [Max] | 6 N |
| Insertion Force [Min] | 2 N |
| Length - Overall | 0.193 in |
| Length - Overall | 4.9 mm |
| Mounting Hole Diameter [Max] [diameter] | 1.09 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.043 in |
| Mounting Hole Diameter [Min] [diameter] | 0.039 in |
| Mounting Hole Diameter [Min] [diameter] | 0.99 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 4.45 mm |
| Socket Depth | 0.175 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.30 | |||
| 2500 | $ 0.26 | |||
| 3000 | $ 0.28 | |||
Description
General part information
H3191 Series
Pin Receptacle Connector 0.018" ~ 0.020" (0.46mm ~ 0.51mm) No Tail Solder
