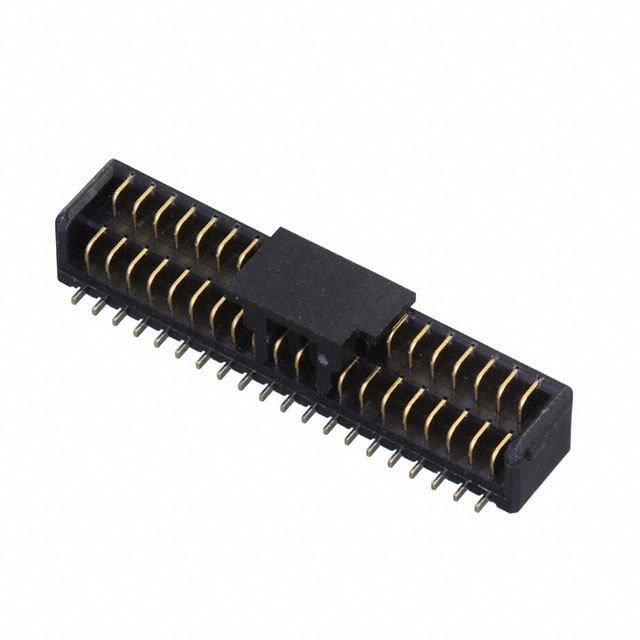

DF24A-40DP-0.9V(51)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 0.9MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 0.9MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF24A-40DP-0.9V(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.9 mm
Pitch - Mating	0.035 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	80 V

Part	Number of Positions	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows	Style	Termination	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Features	Voltage Rating	Insulation Color	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. DF24A-50DP-0.9V(51)	50	Header	0.134 in	3.4 mm	Flash	Gold	2	Board to Cable/Wire	Solder	All	Gold	Push-Pull	Pick and Place	80 V	Black	Phosphor Bronze	Surface Mount	0.9 mm	0.035 "	Rectangular	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	Male Blade	Shrouded - 4 Wall	0.099 µm	3.9 µin
Hirose Electric USA, Inc. DF24A-40DP-0.9V(51)	40	Header	0.134 in	3.4 mm	Flash	Gold	2	Board to Cable/Wire	Solder	All	Gold	Push-Pull	Pick and Place	80 V	Black	Phosphor Bronze	Surface Mount	0.9 mm	0.035 "	Rectangular	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	Male Blade	Shrouded - 4 Wall	0.099 µm	3.9 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 40 position 0.035" (0.90mm)
