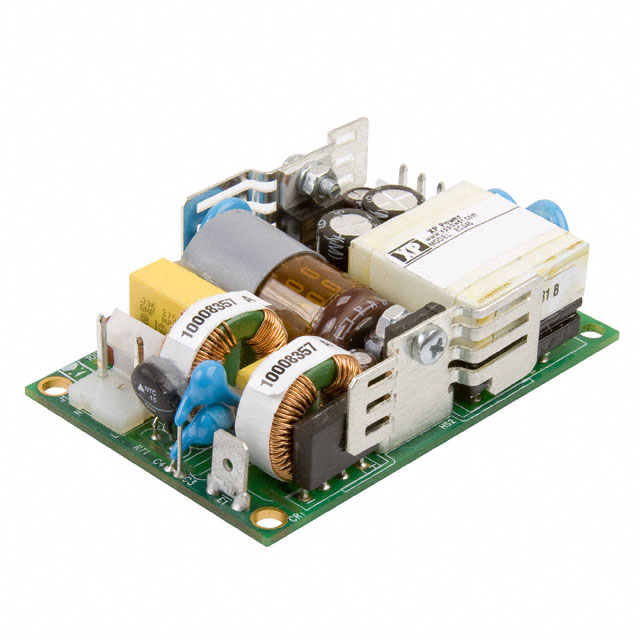

ECS45US05
ActiveXP POWER
AC/DC CONVERTER 5V 45W
Deep-Dive with AI
Search across all available documentation for this part.
ECS45US05
ActiveXP POWER
AC/DC CONVERTER 5V 45W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS45US05 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB |
| Current - Output 1 | 6 A |
| Efficiency | 90 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.05 " |
| Size / Dimension [z] | 26.7 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.92 | |
| 5 | $ 37.75 | |||
| 10 | $ 36.58 | |||
| 25 | $ 35.03 | |||
| 100 | $ 32.69 | |||
Description
General part information
ECS45 Series
Open Frame AC DC Converters 1 Output 5V 80 ~ 264 VAC Input
