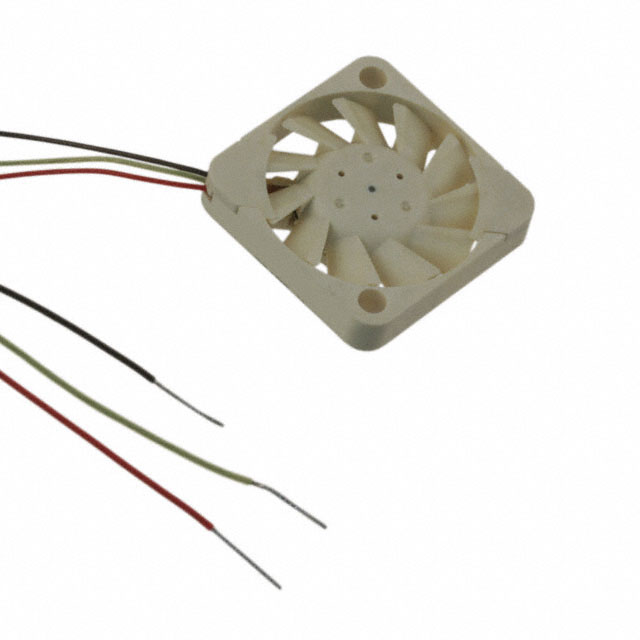

UF3H3-500
ObsoleteSunon Fans
FAN AXIAL 17X3MM VAPO 3VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UF3H3-500
ObsoleteSunon Fans
FAN AXIAL 17X3MM VAPO 3VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UF3H3-500 |
|---|---|
| Air Flow | 0.575 CFM |
| Air Flow | 0.016 m³/min |
| Approval Agency | CE |
| Current Rating (Amps) | 0.037 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Liquid Crystal Polymer (LCP) |
| Material - Frame | Magnesium |
| Noise | 32 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 0.1 W |
| RPM | 13000 RPM |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [y] | 17 mm |
| Static Pressure | 21.2 Pa |
| Static Pressure | 0.085 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 3.5 VDC |
| Voltage Range [Min] | 2 V |
| Weight | 1.36 g |
| Weight | 0.003 lb |
| Width [y] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UF3H3 Series
Fan Tubeaxial 3VDC Square - 17mm L x 17mm H Vapo-Bearing™ 0.575 CFM (0.016m³/min) 3 Wire Leads
