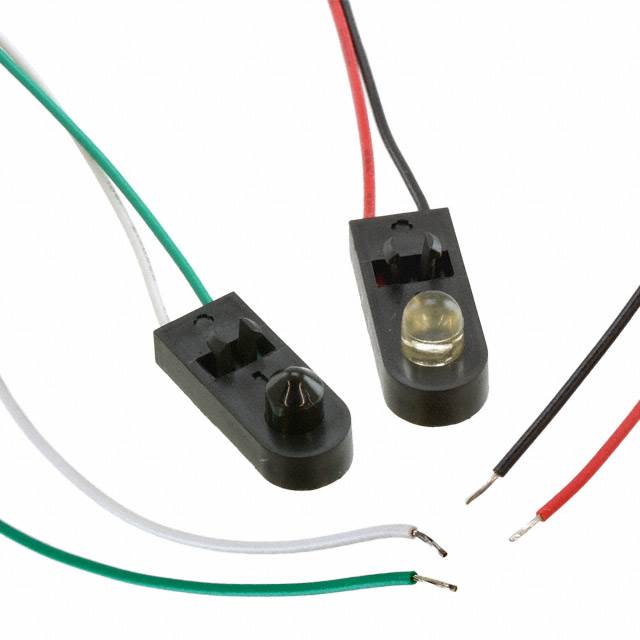

OPB100Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB100Z

Current - Collector (Ic) (Max) [Max]	50 mA
Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Output Configuration	Type	Mounting Type	Sensing Method	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/Optek Technology OPB100-SZ	30 V	100 mA	50 mA	Phototransistor	Unamplified	Snap-In	Through-Beam	Module Pre-Wired	85 °C	-40 °C
TT Electronics/Optek Technology OPB100Z	30 V	100 mA	50 mA	Phototransistor	Unamplified	Snap-In	Through-Beam	Module Pre-Wired	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 12" (304.8mm) Phototransistor Module, Pre-Wired
