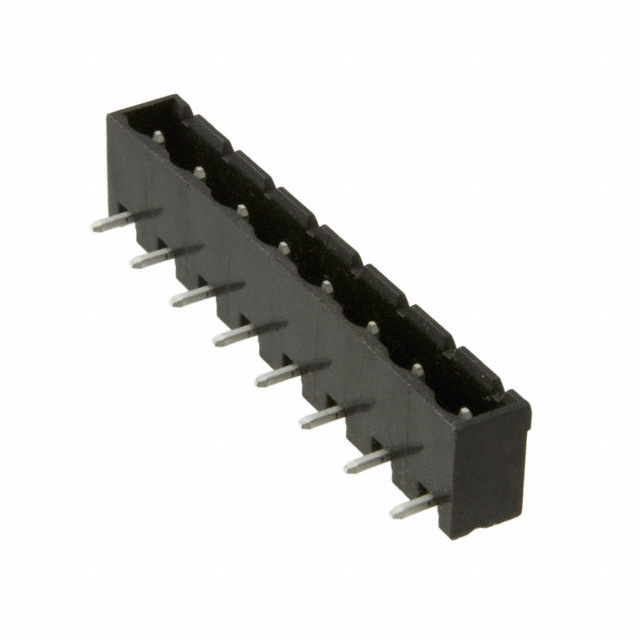

ELFH08410

Active

AMPHENOL PCD

TERM BLOCK HDR 8POS 90DEG 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 8POS 90DEG 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH08410

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Header Orientation	90°, Right Angle
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	8
Operating Temperature	105 C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Pitch [x]	Pitch [x]	Material Flammability Rating	Operating Temperature	Contact Mating Finish	Voltage - UL	Number of Positions	Header Orientation	Positions Per Level	Contact Material	Contact Tail Length	Contact Tail Length	Type	Color	Insulation Height	Insulation Height	Number of Levels	Termination Style	Mounting Type
AMPHENOL PCD ELFH0841G
AMPHENOL PCD ELFH0845G
AMPHENOL PCD ELFH08410	0.3 in	7.62 mm	UL94 V-0	105 C	Tin	300 V	8	90° Right Angle	8	Brass	3.94 mm	0.155 in	Header Male Pins Shrouded (4 Side)	Black	8.1 mm	0.319 in	1	Solder	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.58

General part information

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
