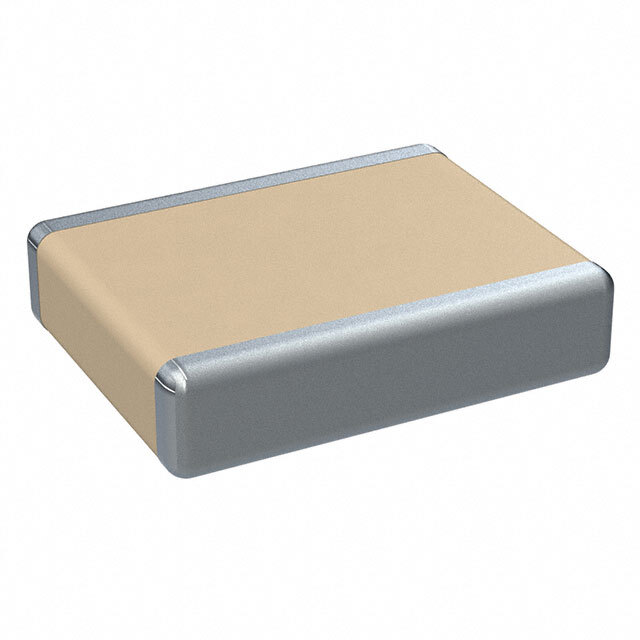

C1825C621KZGAC7800

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 2500V, 10% +TOL, 10% -TOL, C0G, -/+30PPM/CEL TC, 0.00062UF, 1825,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C1825C621KZGAC7800

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 2500V, 10% +TOL, 10% -TOL, C0G, -/+30PPM/CEL TC, 0.00062UF, 1825,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1825C621KZGAC7800

Applications	General Purpose
Capacitance	620 pF
Features	Low ESL, High Voltage
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	4564 Metric
Package / Case	1825
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.252 in
Size / Dimension [y]	6.4 mm
Temperature Coefficient	NP0, C0G
Thickness (Max)	1.55 mm
Thickness (Max) [Max]	0.061 in
Tolerance	10 %
Voltage - Rated	2.5 kV
Voltage - Rated	2.5 kV

C1825C Series

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Applications	Voltage - Rated	Mounting Type	Temperature Coefficient	Package / Case	Package / Case	Features	Voltage - Rated	Thickness (Max)	Thickness (Max) [Max] [custom]
KEMET C1825C105M5RAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	20 %	1 µF	1.25 mm	0.049 "	Bypass Decoupling	50 VDC	MLCC Surface Mount	X7R	4564 Metric	1825
KEMET C1825C103F5GAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	1 %	10000 pF	1.25 mm	0.049 "	General Purpose	50 VDC	MLCC Surface Mount	C0G NP0	4564 Metric	1825	Low ESL
KEMET C1825C183F5GAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	1 %	0.018 µF	1.25 mm	0.049 "	General Purpose	50 VDC	MLCC Surface Mount	C0G NP0	4564 Metric	1825	Low ESL
KEMET C1825C103J5GAL7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	5 %	10000 pF	1.25 mm	0.049 "	General Purpose	50 VDC	MLCC Surface Mount	C0G NP0	4564 Metric	1825	Low ESL
KEMET C1825C822G5GAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	2 %		1.25 mm	0.049 "	General Purpose	50 VDC	MLCC Surface Mount	C0G NP0	4564 Metric	1825	Low ESL
KEMET C1825C224M2RAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	20 %	0.22 µF	1.25 mm	0.049 "	Bypass Decoupling	200 V	MLCC Surface Mount	X7R	4564 Metric	1825
KEMET C1825C621KZGAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	10 %	620 pF		0.061 in	General Purpose	2.5 kV	MLCC Surface Mount	C0G NP0	4564 Metric	1825	High Voltage Low ESL	2.5 kV	1.55 mm
KEMET C1825C564J1RAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	5 %	0.56 µF			Bypass Decoupling	100 V	MLCC Surface Mount	X7R	4564 Metric	1825			1.45 mm	0.057 in
KEMET C1825C154J1RAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	5 %	0.15 ÁF	1.25 mm	0.049 "	Bypass Decoupling	100 V	MLCC Surface Mount	X7R	4564 Metric	1825
KEMET C1825C273F5GAC7800	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	1 %	0.027 µF	1.25 mm	0.049 "	General Purpose	50 VDC	MLCC Surface Mount	C0G NP0	4564 Metric	1825	Low ESL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.13

Description

General part information

C1825C Series

620 pF ±10% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1825 (4564 Metric)
