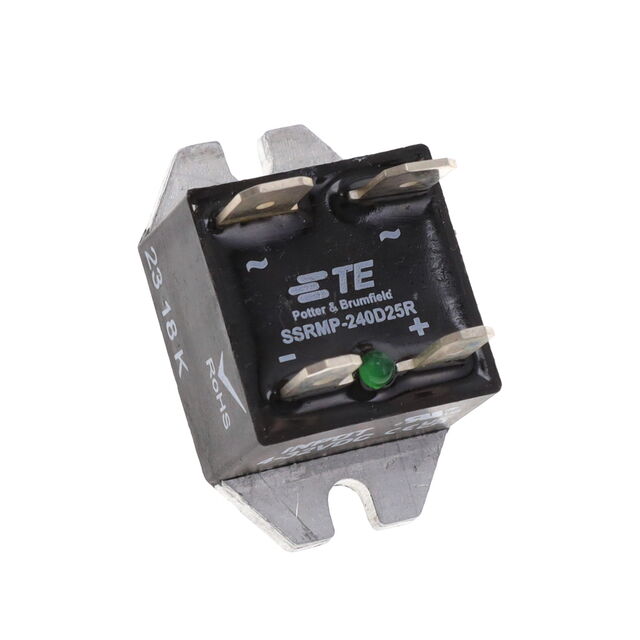

SSRMP-240D25R
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
SSRMP-240D25R
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSRMP-240D25R |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | Hockey Puck |
| Supplier Device Package | Mini Puck |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.71 | |
| 10 | $ 26.33 | |||
| 25 | $ 24.94 | |||
| 50 | $ 23.56 | |||
| 125 | $ 22.17 | |||
| 250 | $ 20.79 | |||
| 500 | $ 19.40 | |||
Description
General part information
SSRMP Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
No documents available
