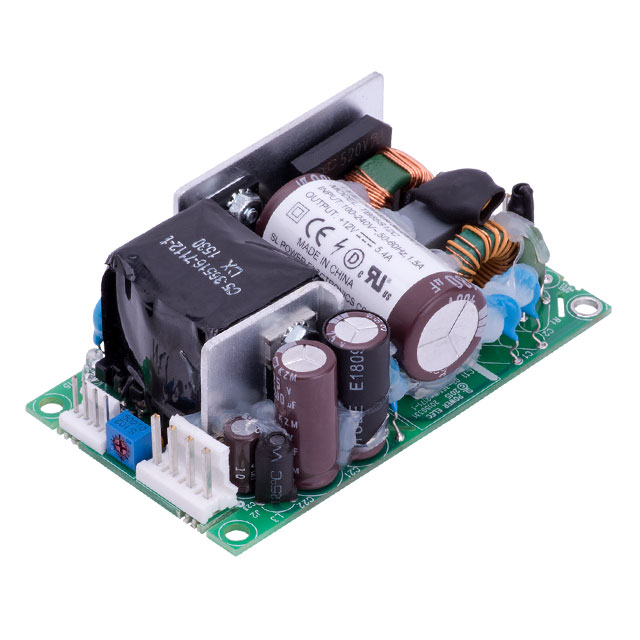

TB65S15C

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 65W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	TB65S15C

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	4.3 A
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	88.9 mm
Size / Dimension [x]	3.5 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	33.1 mm
Size / Dimension [z]	1.3 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Minimum Load Required	Voltage - Output 1	Voltage - Isolation	Applications	Mounting Type	Current - Output 1	Approval Agency	Efficiency	Type
SL POWER / Advanced Energy TB65S15K	1	-20 °C	70 °C	Adjustable Output Universal Input	33.1 mm	50.8 mm	88.9 mm	2 in	1.3 "	3.5 in		15 V	3000 V	ITE (Commercial)	Chassis Mount	4.3 A	CE cURus DEMKO	88 %	Open Frame
SL POWER / Advanced Energy TB65S15C	1	-20 °C	70 °C	Adjustable Output Universal Input	33.1 mm	50.8 mm	88.9 mm	2 in	1.3 "	3.5 in		15 V	3000 V	ITE (Commercial)	Chassis Mount	4.3 A	CE cURus DEMKO	88 %	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
