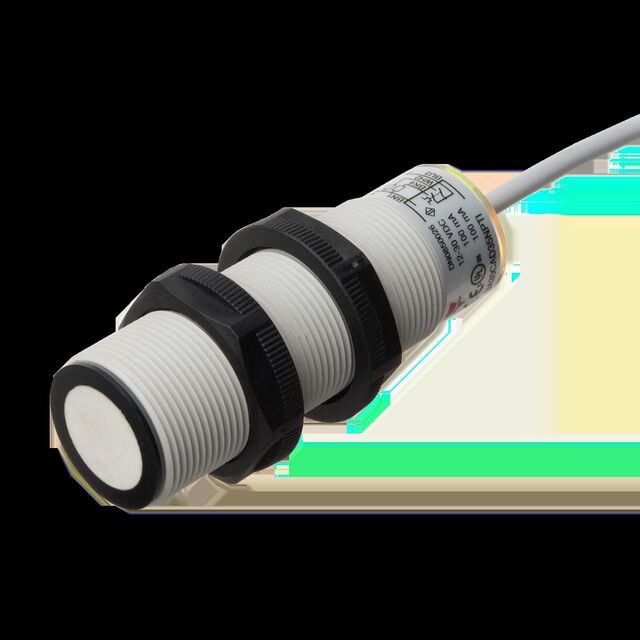

UA30CAD35NGTI

Active

CARLO GAVAZZI

SENSOR PROX ULTRA 250-3500MM CYL

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR PROX ULTRA 250-3500MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	UA30CAD35NGTI

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Type	NPN, Analog Current
Package / Case	Cylinder, Threaded - M30
Response Frequency	2 Hz
Sensing Distance [Max]	3.5 m
Sensing Distance [Max]	137.795 in
Sensing Distance [Min]	250 mm
Sensing Distance [Min]	9.843 "
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Material - Body	Response Frequency	Package / Case	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Indicator [custom]	Sensor Type	Termination Style	Ingress Protection
CARLO GAVAZZI UA30CAD35NGTI	3.5 m	250 mm	137.795 in	9.843 "	Polybutylene Terephthalate (PBT)	2 Hz	Cylinder Threaded - M30	Unshielded	-20 C	70 °C	12 V	30 VDC	Analog Current NPN	LED	Ultrasonic	Cable Leads	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX ULTRA 250-3500MM CYL
