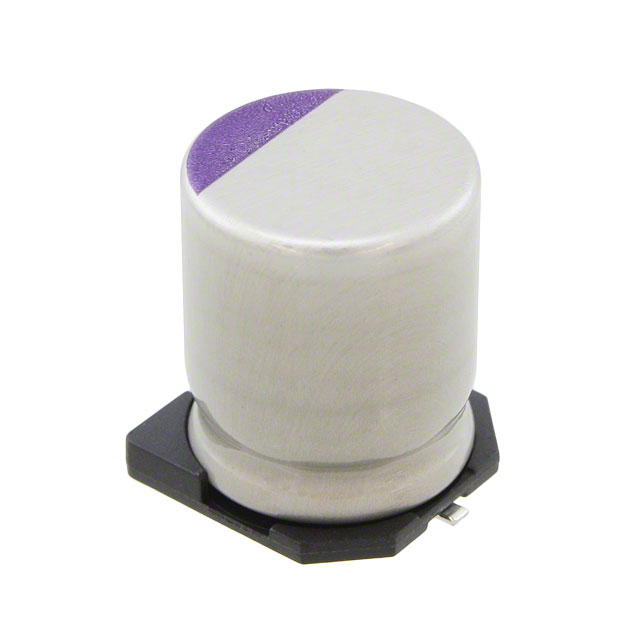

16SVPE470M
ActivePanasonic Industrial Automation Sales
ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 16V, 20% +TOL, 20% -TOL, 470UF, SURFACE MOUNT, 4141, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
16SVPE470M
ActivePanasonic Industrial Automation Sales
ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 16V, 20% +TOL, 20% -TOL, 470UF, SURFACE MOUNT, 4141, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 16SVPE470M |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 10 mOhm |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 6.1 A |
| Ripple Current @ Low Frequency | 305 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Surface Mount Land Size [x] | 0.406 in |
| Surface Mount Land Size [x] | 10.3 mm |
| Surface Mount Land Size [y] | 10.3 mm |
| Surface Mount Land Size [y] | 0.406 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.29 | |
| 10 | $ 1.76 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 2.29 | ||
| 10 | $ 1.76 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.17 | |||
| Tape & Reel (TR) | 400 | $ 0.97 | ||
| 800 | $ 0.92 | |||
| 1200 | $ 0.90 | |||
| 2000 | $ 0.88 | |||
| 2800 | $ 0.88 | |||
| 4000 | $ 0.85 | |||
Description
General part information
16SVPE Series
470 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
