7212-1511-000

Active

Radiall USA, Inc.

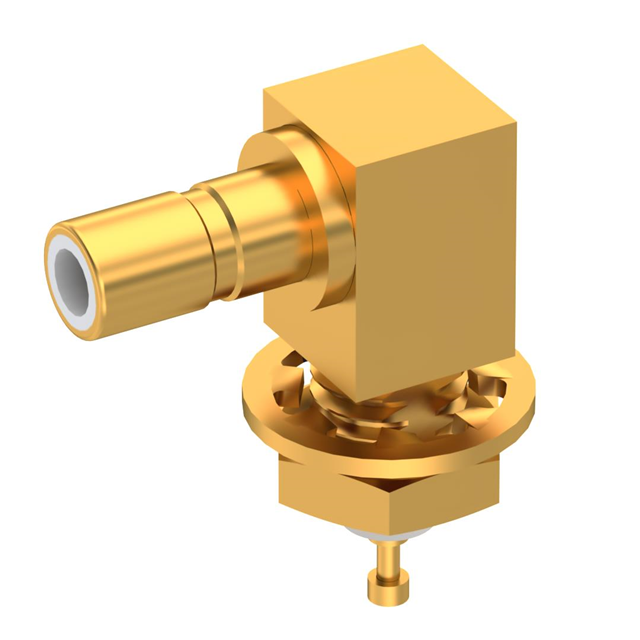

SSMB / RIGHT ANGLE JACK RECEPTAC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / RIGHT ANGLE JACK RECEPTAC

Technical Specifications

Parameters and characteristics for this part

Specification	7212-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Turret
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Number of Ports	Impedance	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Mounting Type	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mating Cycles	Body Material	Center Contact Material	Voltage Rating	Connector Type	Connector Style	Fastening Type	Mounting Feature	Body Finish
Radiall USA, Inc. 7212-1511-000	1	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	12.4 GHz	Panel Mount Right Angle	Gold	Solder	-65 ░C	165 °C	Turret	500	Brass	Beryllium Copper	250 VDC	Jack Male Pin	SSMB	Snap-On	Bulkhead - Rear Side Nut	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 25.81

General part information

SSMB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Turret

Technical documentation and resources

No documents available
