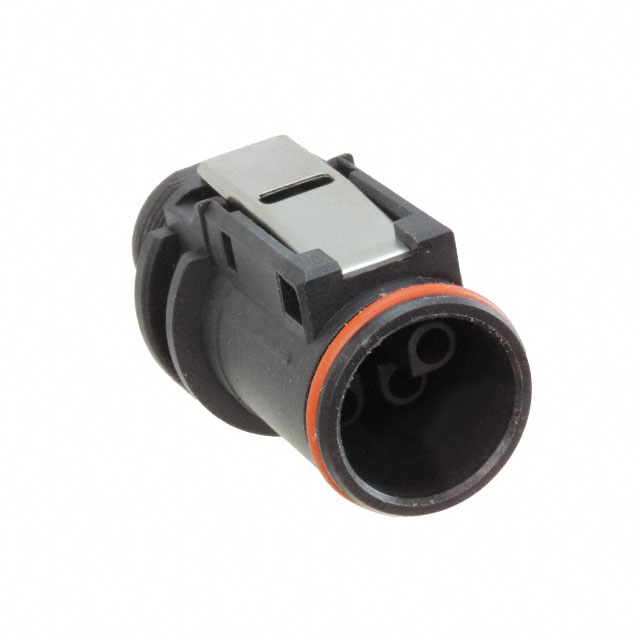

UTL6TH103G1P

Active

Souriau-Sunbank by Eaton

CONN PLG HSG F/M 4POS PNL MNT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLG HSG F/M 4POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	UTL6TH103G1P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	10-3
Shielding	Unshielded
Type	For Female Sockets and Male Pins

Part	Contact Shape	Note	Number of Positions	Housing Color	Fastening Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Size	Material Flammability Rating	Orientation	Connector Type	Mounting Feature	Type	Shell Size - Insert	Ingress Protection	Shielding
Souriau-Sunbank by Eaton UTL6TH103G1S	Circular	Contacts Not Included	4	Black	Latch Lock	Nylon Polyamide (PA)	-40 °C	105 ░C	Crimp	16	UL94 V-0	Keyed	Plug Housing	Bulkhead - Rear Side Nut	For Female Sockets and Male Pins	10-3	IP68 IP69K	Unshielded
Souriau-Sunbank by Eaton UTL6TH103G1P	Circular	Contacts Not Included	4	Black	Latch Lock	Nylon Polyamide (PA)	-40 °C	105 ░C	Crimp	16	UL94 V-0	Keyed	Plug Housing	Bulkhead - Rear Side Nut	For Female Sockets and Male Pins	10-3	IP68 IP69K	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Plug Housing Panel Mount
