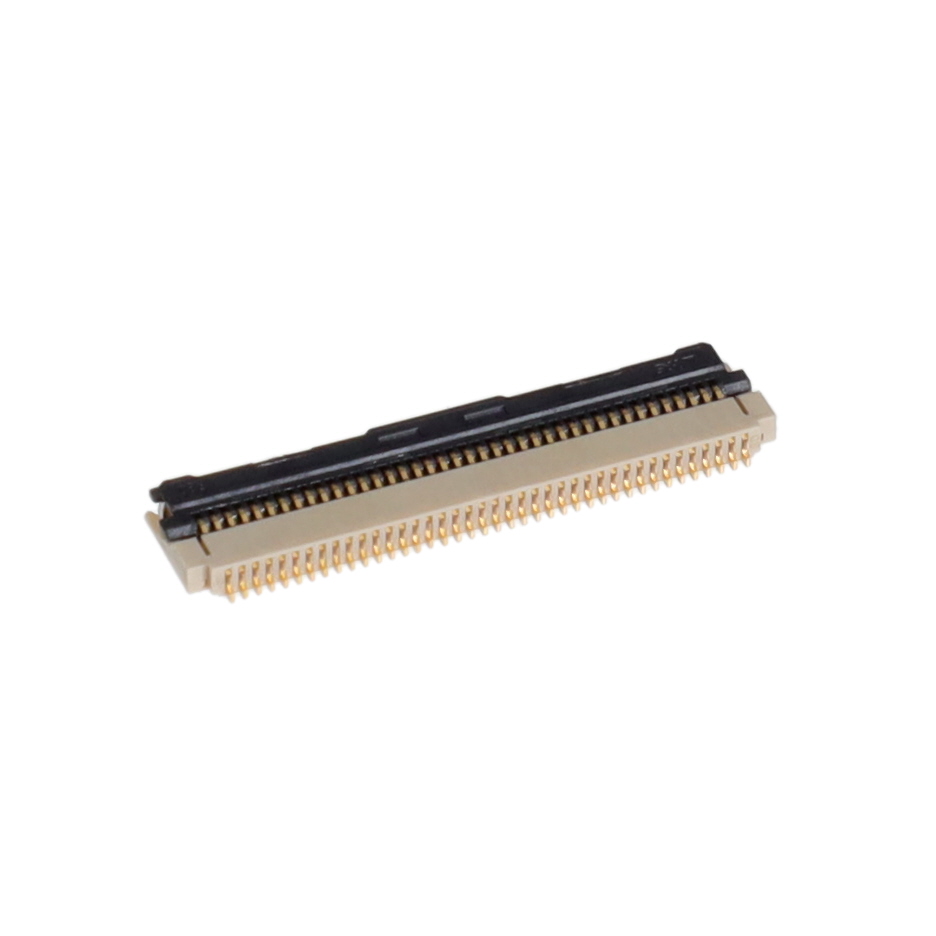

FH29DJ-80S-0.2SHW(05)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 80POS 0.2MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH29 Series Datasheet

FH29DJ-80S-0.2SHW(05)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 80POS 0.2MM R/A

Deep-Dive with AI

DocumentsDatasheet FH29 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH29DJ-80S-0.2SHW(05)

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.25 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.047 "
Height Above Board	1.2 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	80
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 mm
Pitch [x]	0.008 in
Termination	Solder
Voltage Rating	40 V

FH29DJ Series

Part	Actuator Color	Mounting Type	Locking Feature	Mating Cycles	Features	Voltage Rating	Flat Flex Type	Current Rating (Amps)	Contact Material	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Housing Material	Cable End Type	Contact Finish	Pitch [x]	Pitch [x]	Connector/Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	FFC, FCB Thickness	Termination	Material Flammability Rating
Hirose Electric USA, Inc. FH29DJ-50S-0.2SHW(05)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige	1.97 Áin	0.05 Ám	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	50	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder
Hirose Electric USA, Inc. FH29DJ-120S-0.2SHW(99)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige			0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Notched or Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	120	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder	UL94 V-0
Hirose Electric USA, Inc. FH29DJ-50S-0.2SHW(99)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige	1.97 Áin	0.05 Ám	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	50	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder
Hirose Electric USA, Inc. FH29DJ-60S-0.2SHW(99)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige	1.97 Áin	0.05 Ám	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	60	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder
Hirose Electric USA, Inc. FH29DJ-70S-0.2SHW(05)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige	1.97 Áin	0.05 Ám	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	70	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder
Hirose Electric USA, Inc. FH29DJ-44S-0.2SHW(05)	Black	Surface Mount Right Angle	Flip Lock	20		40 V	FPC	0.25 A	Phosphor Bronze	Beige			0.047 "	1.2 mm	Liquid Crystal Polymer (LCP)	Notched or Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	44	85 °C	-55 °C	Polyphenylene Sulfide (PPS)	0.2 mm	Solder	UL94 V-0
Hirose Electric USA, Inc. FH29DJ-80S-0.2SHW(05)	Black	Surface Mount Right Angle	Flip Lock	20	Solder Retention Zero Insertion Force (ZIF)	40 V	FPC	0.25 A	Phosphor Bronze	Beige	1.97 Áin	0.05 Ám	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	Gold	0.2 mm	0.008 in	Contacts Bottom	80	85 °C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	0.2 mm	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.44
		10	$ 4.04
		25	$ 3.82
		50	$ 3.73
		100	$ 3.56
		250	$ 3.11
		500	$ 3.02
		1000	$ 2.58
		2500	$ 2.40
	Digi-Reel®	1	$ 4.44
		10	$ 4.04
		25	$ 3.82
		50	$ 3.73
		100	$ 3.56
		250	$ 3.11
		500	$ 3.02
		1000	$ 2.58
		2500	$ 2.40
	Tape & Reel (TR)	5000	$ 2.12

Description

General part information

FH29DJ Series

80 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
