M3CEK-1006J

Obsolete

3M (TC)

IDC CABLE - MKC10K/MC10G/MCE10K

Search across all available documentation for this part.

Obsolete

3M (TC)

IDC CABLE - MKC10K/MC10G/MCE10K

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Features	Length [x]	Length [x]	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Color	Length	Length	Length
3M (TC) M3CEK-1018J	2	Polarizing Key	457.2 mm	1.5 ft	Socket to Card Edge	Gold	0.76 Ám	30 Áin	10	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Unshielded
3M (TC) M3CEK-1006R	2	Polarizing Key			Socket to Card Edge	Gold	0.76 Ám	30 Áin	10	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Unshielded	Multiple Ribbon	152.4 mm	6 "	0.5 '
3M (TC) M3CEK-1006J	2	Polarizing Key			Socket to Card Edge	Gold	0.76 Ám	30 Áin	10	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Unshielded		152.4 mm	6 "	0.5 '
3M (TC) M3CEK-1018R	2	Polarizing Key	457.2 mm	1.5 ft	Socket to Card Edge	Gold	0.76 Ám	30 Áin	10	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Unshielded	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

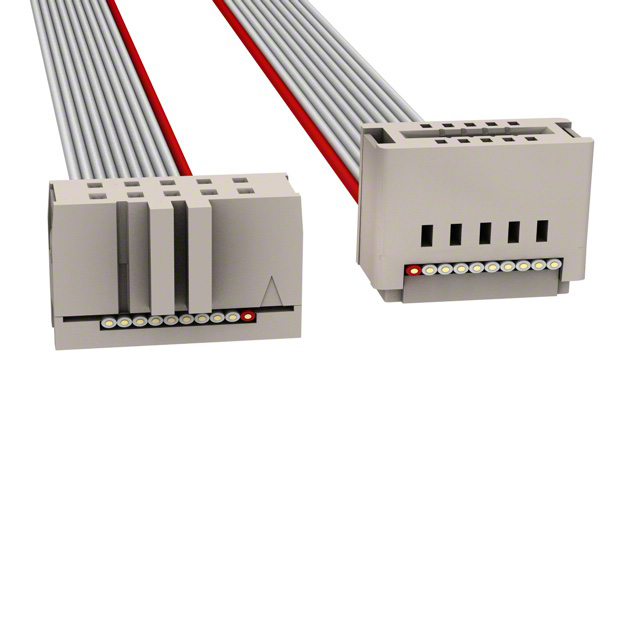

10 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
