25S,AL

Active

Serpac

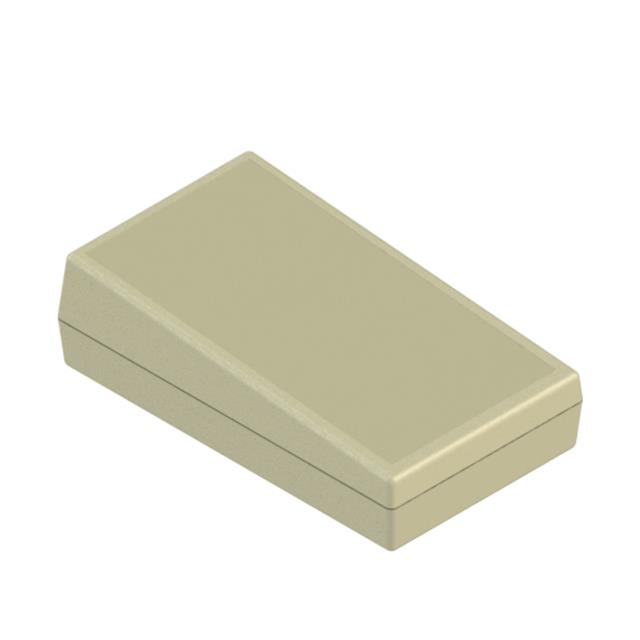

BOX ABS ALMOND 5.63"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 5.63"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	25S,AL

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Almond
Container Type	Box
Design	Split Sides and Slanted Top
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	1.51 in
Height [z]	38.35 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	5.63 in
Size / Dimension [x]	143 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.231 lb
Weight	104.78 g

Part	Thickness	Thickness	Material	Material Flammability Rating	Ratings	Features	Features	Weight	Weight	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Color	Height [z]	Height [z]	Container Type
Serpac 25S,BK	2.54 mm	0.1 in	Plastic ABS	UL94 HB	IP40	Battery Compartment PCB Supports	9 V	0.231 lb	104.78 g	Split Sides and Slanted Top	5.63 in	143 mm	3.25 "	82.55 mm	118 cm²	18.3 in²	Black	1.51 in	38.35 mm	Box
Serpac 25S,AL	2.54 mm	0.1 in	Plastic ABS	UL94 HB	IP40	Battery Compartment PCB Supports	9 V	0.231 lb	104.78 g	Split Sides and Slanted Top	5.63 in	143 mm	3.25 "	82.55 mm	118 cm²	18.3 in²	Almond	1.51 in	38.35 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Split Sides and Slanted Top 5.630" L x 3.250" W (143.00mm x 82.55mm) X 1.510" (38.35mm)
