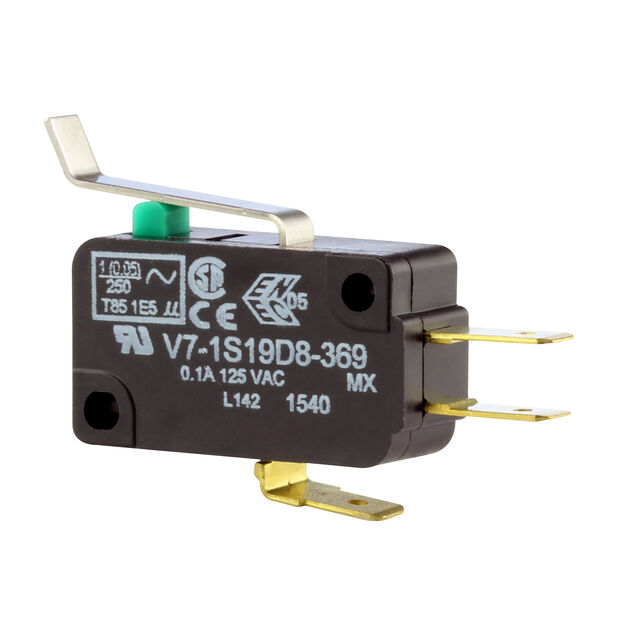

V7-1S19D8-369

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet V7 Series Basic Switches Catalog

V7-1S19D8-369

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsDatasheet V7 Series Basic Switches Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1S19D8-369

Actuator Type	Formed, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.022 in
Differential Travel	0.56 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	100 gf
Operating Position	19.4 mm
Operating Position	0.764 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.057 in
Overtravel	1.45 mm
Release Force	10 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

V7-1S1 Series

Part	Electrical Life	Differential Travel	Differential Travel	Operating Force	Overtravel	Overtravel	Release Force	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Actuator Type	Mechanical Life	Circuit	Mounting Type	Operating Position	Operating Position	Switch Function	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions V7-1S17D8-022	100000 Cycles	0.03 in	0.76 mm	85 gf	2.16 mm	0.085 in	8 gf	125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	0.12 in	3 mm	Lever Straight	10000000 Cycles	SPDT	Chassis Mount	0.6 in	15.2 mm	On-Mom	100 mA
Honeywell Sensing and Productivity Solutions V7-1S18D8-263	100000 Cycles	0.03 in	0.76 mm	90 gf	1.9 mm	0.075 in	9 gf	125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	0.11 in	2.8 mm	Lever Simulated Roller	10000000 Cycles	SPDT	Chassis Mount	0.73 in	18.5 mm	On-Mom	100 mA
Honeywell Sensing and Productivity Solutions V7-1S17D8	100000 Cycles	0.01 in	0.25 mm	150 gf	1.27 mm	0.05 in	25 gf	125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	0.047 in	1.2 mm	Round (Pin Plunger)	10000000 Cycles	SPDT	Chassis Mount	0.579 in	14.7 mm	On-Mom	100 mA
Honeywell Sensing and Productivity Solutions V7-1S17D8-201	100000 Cycles	0.012 "	0.3 mm	170 gf	1 mm	0.04 in	20 gf	125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	0.047 in	1.2 mm	Lever Roller	10000000 Cycles	SPDT	Chassis Mount	0.812 in	20.6 mm	On-Mom	100 mA
Honeywell Sensing and Productivity Solutions V7-1S19D8-369	100000 Cycles	0.022 in	0.56 mm	100 gf	1.45 mm	0.057 in	10 gf	125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C			Formed Lever	10000000 Cycles	SPDT	Chassis Mount	0.764 in	19.4 mm	On-Mom	100 mA
Honeywell Sensing and Productivity Solutions V7-1S17D8-374				150 gf				125 V	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C			Formed Lever	10000000 Cycles	SPDT	Chassis Mount			On-Mom	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 6.28

Description

General part information

V7-1S1 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

V7 Series Basic Switches Catalog

Datasheet
