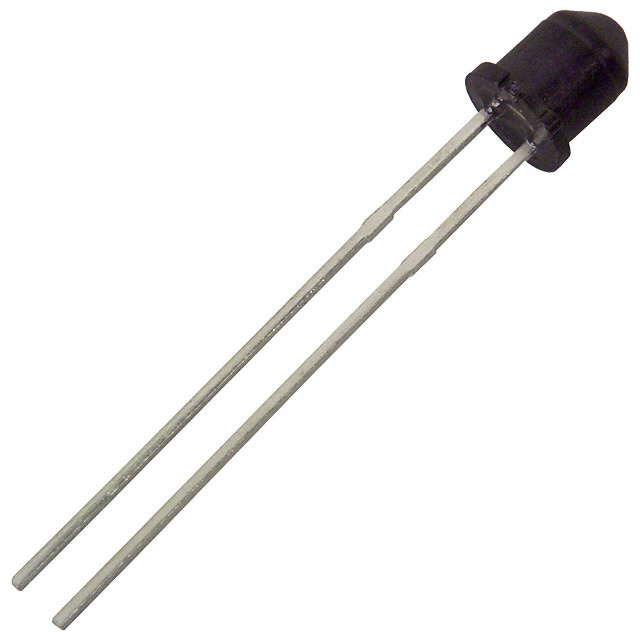

OP598A

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW TO18

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW TO18

Technical Specifications

Parameters and characteristics for this part

Specification	OP598A

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	TO-18-2
Power - Max [Max]	250 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Orientation	Current - Dark (Id) (Max) [Max]	Wavelength	Package / Case	Mounting Type	Power - Max [Max]
TT Electronics/Optek Technology OP598A	100 °C	-40 °C	30 V	50 mA	Top View	100 nA	890 nm	TO-18-2	Through Hole	250 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 890nm Top View TO-18-2
