50D45-01-2-AJN

Active

Grayhill Inc.

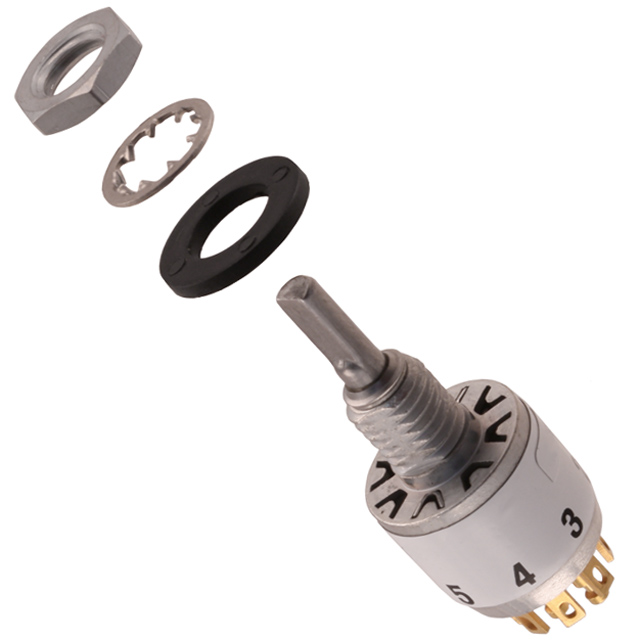

SWITCH ROTARY 2-4POS 150MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2-4POS 150MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	50D45-01-2-AJN

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	45 °
Circuit per Deck	DP4T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	4
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Angle of Throw	Index Stops	Actuator Length [x]	Voltage Rating - DC	Contact Finish	Contact Timing	Number of Poles per Deck	Voltage Rating - AC	Actuator Type [diameter]	Actuator Type	Termination Style	Depth Behind Panel [z]	Circuit per Deck	Number of Decks [custom]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Number of Positions [Max]	Number of Positions [Min]
Grayhill Inc. 50D45-01-1-AJN	45 °	Adjustable	9.53 mm	28 V	Gold	Non-Shorting	1	115 V	3.17 mm	Flatted	Solder Lug	18.77 mm	SP8T	1	150 mA 200 mA	6.45 mm
Grayhill Inc. 50D45-01-2-AJN	45 °	Adjustable	9.53 mm	28 V	Gold	Non-Shorting	2	115 V	3.17 mm	Flatted	Solder Lug	18.77 mm	DP4T	1	150 mA 200 mA	6.45 mm	4	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 4 Position DP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
