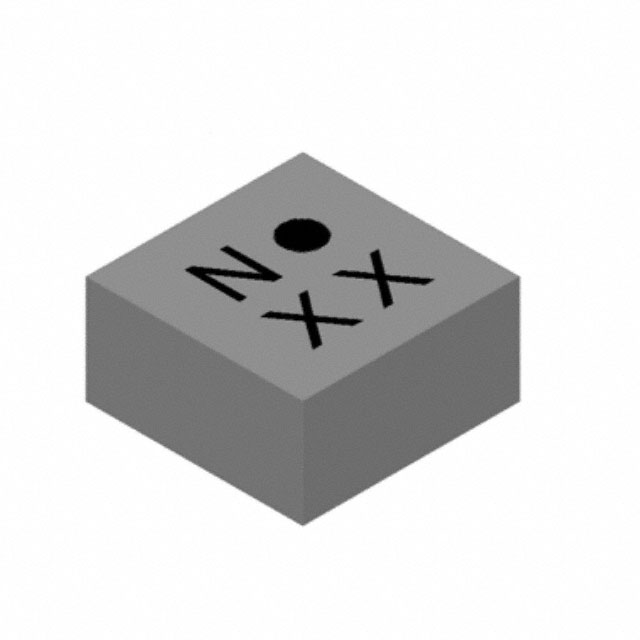

MMC5603NJ
ActiveMemsic Inc.
3-AXIS AMR MAGNETIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMC5603NJ
ActiveMemsic Inc.
3-AXIS AMR MAGNETIC SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMC5603NJ |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth | 1 kHz |
| Current - Supply (Max) [Max] | 4 mA |
| Features | Temperature Compensated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I3C, I2C |
| Package / Case | 4-UFBGA, WLBGA |
| Resolution | 20 b |
| Sensing Range | 3 mT |
| Supplier Device Package | 4-WLP |
| Supplier Device Package [x] | 0.82 |
| Supplier Device Package [y] | 0.82 |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.98 | ||
| 10 | $ 0.75 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.36 | |||
| Tape & Reel (TR) | 10000 | $ 0.33 | ||
| 20000 | $ 0.33 | |||
| 30000 | $ 0.32 | |||
Description
General part information
MMC5603 Series
Magnetoresistive Sensor X, Y, Z Axis 4-WLP (0.82x0.82)
Documents
Technical documentation and resources
