100141-1
ActiveTE Connectivity Raychem Cable Protection

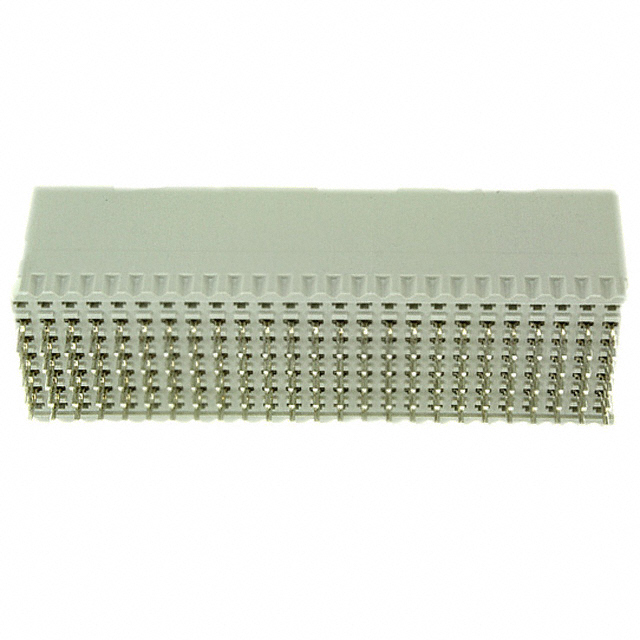

CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
100141-1
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100141-1 |
|---|---|
| Connector Style | B 25 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.48 | |
| 10 | $ 7.39 | |||
| 30 | $ 7.19 | |||
| 50 | $ 7.00 | |||
| 100 | $ 6.57 | |||
| 250 | $ 6.53 | |||
| 500 | $ 6.14 | |||
| 1000 | $ 5.48 | |||
Description
General part information
100141 Series
125 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Documents
Technical documentation and resources
No documents available
