RCLAMP5011T.TNT

Obsolete

Semtech Corporation

TVS DIODE 5VWM 14VC SLP0806P2T

Search across all available documentation for this part.

Obsolete

Semtech Corporation

TVS DIODE 5VWM 14VC SLP0806P2T

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP5011T.TNT

Applications	HDMI
Bidirectional Channels [custom]	1
Capacitance @ Frequency	0.4 pF
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

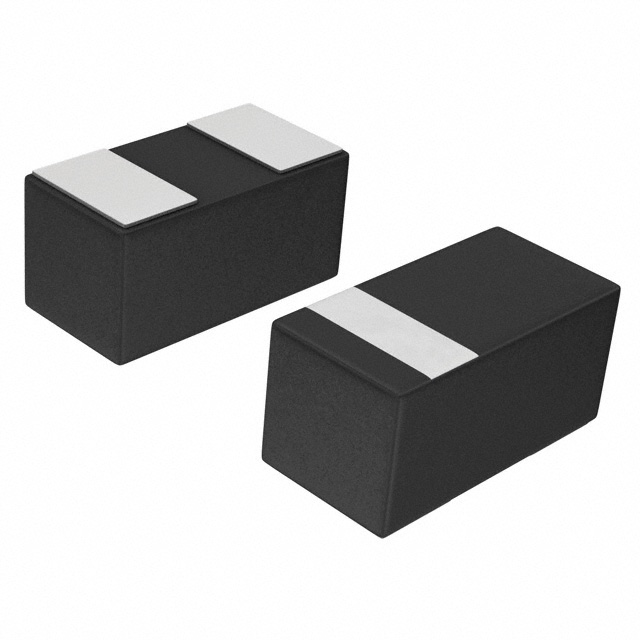

Package / Case	2-XFDFN
Power Line Protection	False
Type	Zener
Voltage - Breakdown (Min) [Min]	6.5 V
Voltage - Clamping (Max) @ Ipp [Max]	14 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Mounting Type	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Package / Case	Capacitance @ Frequency	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
Semtech Corporation RCLAMP5011T.TNT	Surface Mount	6.5 V	4 A	5 V	2-XFDFN	0.4 pF	HDMI	Zener	-40 °C	85 °C		1	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SLP0806P2T

Technical documentation and resources

No documents available
