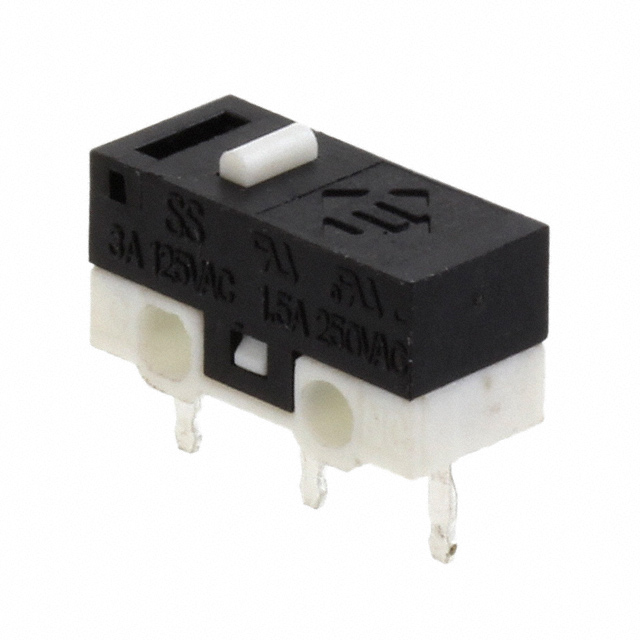

SS0750300F070P1A
ActiveE-Switch
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SS0750300F070P1A
ActiveE-Switch
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS0750300F070P1A |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 70 gf |
| Operating Position [x] | 0.276 in |
| Operating Position [x] | 7 mm |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Pretravel | 0.35 mm |
| Pretravel | 0.014 in |
| Release Force | 25 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.06 | |||
| 50 | $ 1.02 | |||
| 119 | $ 0.97 | |||
| 357 | $ 0.77 | |||
| 595 | $ 0.71 | |||
| 1071 | $ 0.68 | |||
| 5117 | $ 0.62 | |||
Description
General part information
SS0750300 Series
Switch SPDT Through Hole
