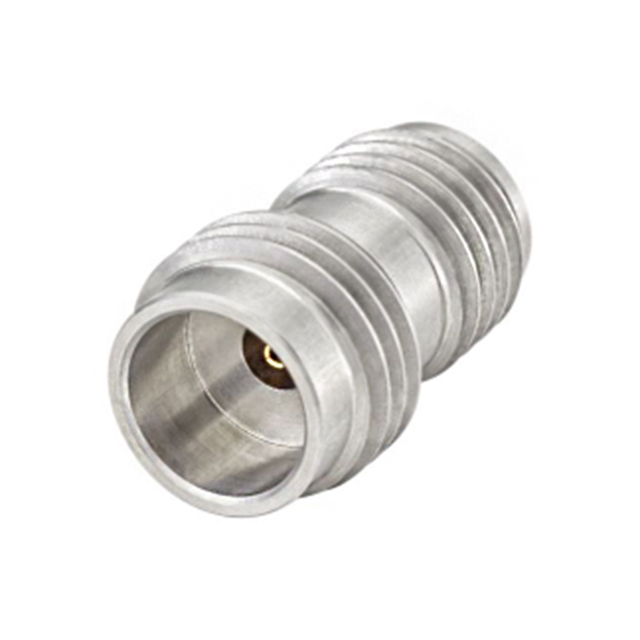

08K524-800S5

Active

Rosenberger

RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	08K524-800S5

Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polystyrene (PS)
Frequency - Max [Max]	70 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	150 VDC

Part	Connector Style	Mounting Feature	Shield Termination	Dielectric Material	Number of Ports	Body Material	Center Contact Plating	Housing Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Frequency - Max [Max]	Body Finish	Voltage Rating	Center Contact Material	Mating Cycles	Connector Type
Rosenberger 08K524-800S5	1.85 mm	Bulkhead	Solder	Polystyrene (PS)	1	Beryllium Copper Stainless Steel	Gold	Gold	Solder	85 °C	-40 °C	50 Ohms	70 GHz	Gold; Passivated	150 VDC	Beryllium Copper	500	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 82.83

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
