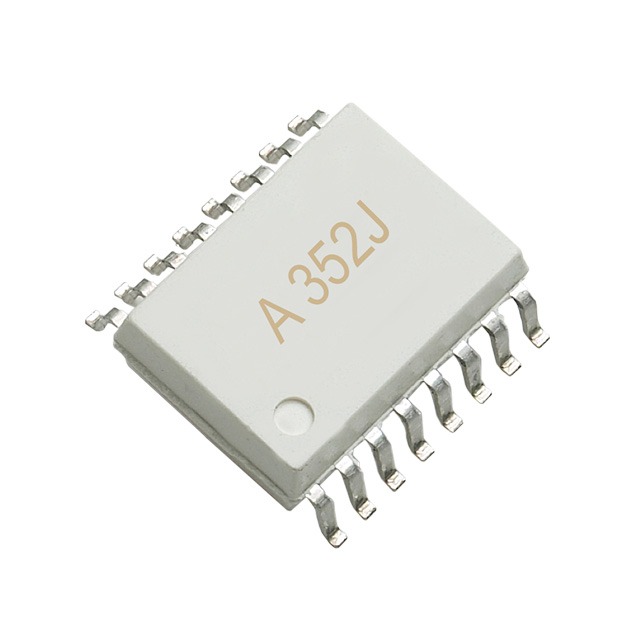

ACPL-352J-000E

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 16SO

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 16SO

Technical Specifications

Parameters and characteristics for this part

Specification	ACPL-352J-000E

Approval Agency	UR, CSA, IEC/EN/DIN
Common Mode Transient Immunity (Min) [Min]	100 V/ns
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output High, Low [custom]	4.5 A
Current - Output High, Low [custom]	4.5 A
Current - Peak Output	5 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	16-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Propagation Delay tpLH / tpHL (Max) [custom]	150 ns
Propagation Delay tpLH / tpHL (Max) [custom]	150 ns
Pulse Width Distortion (Max) [Max]	50 ns
Rise / Fall Time (Typ) [custom]	37 ns
Rise / Fall Time (Typ) [custom]	30 ns
Supplier Device Package	16-SO
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.55 V
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	15 V

Part	Pulse Width Distortion (Max) [Max]	Technology	Common Mode Transient Immunity (Min) [Min]	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - DC Forward (If) (Max) [Max]	Current - Peak Output	Number of Channels	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Broadcom Limited ACPL-352J-000E	50 ns	Optical Coupling	100 V/ns	1.55 V	Surface Mount	0.295 in	16-SOIC	7.5 mm	15 V	30 V	25 mA	5 A	1	4.5 A	4.5 A	150 ns	150 ns	16-SO	-40 °C	105 ░C	CSA IEC/EN/DIN UR	37 ns	30 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
