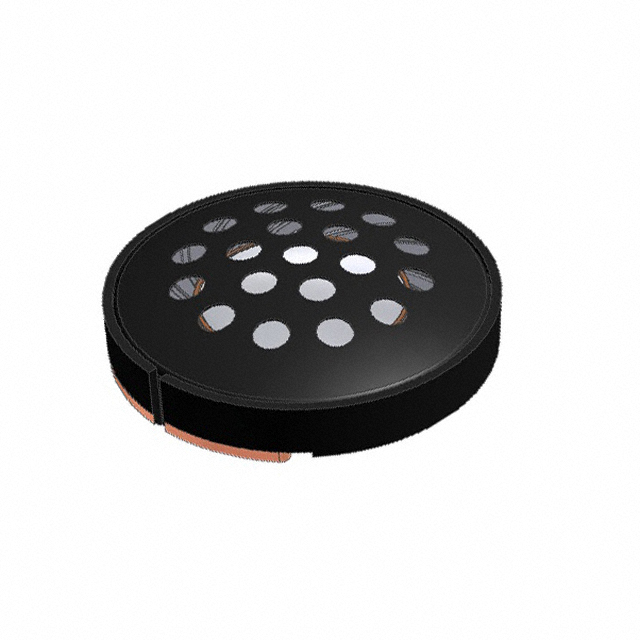

AR027150MR-R

Obsolete

PUI AUDIO

SPEAKER 150OHM 15MW TOP PT 119DB

Search across all available documentation for this part.

Obsolete

PUI AUDIO

SPEAKER 150OHM 15MW TOP PT 119DB

Technical Specifications

Parameters and characteristics for this part

Specification	AR027150MR-R

Efficiency - dBA	119 dBA
Efficiency - Testing	1mW/10mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	650 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	20 Hz
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Impedance	150 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	30 mW
Power - Rated	15 mW
Shape	Round
Size / Dimension [diameter]	26.8 mm
Size / Dimension [diameter]	1.055 in
Technology	Magnetic
Termination	Solder Pads
Type	Receiver

Part	Frequency - Self Resonant	Technology	Material - Cone	Material - Magnet	Type	Power - Max [Max]	Impedance	Port Location	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - dBA	Efficiency - Type	Power - Rated	Efficiency - Testing	Shape	Frequency Range [Max]	Frequency Range [Min]
PUI AUDIO AR027150MR-R	650 Hz	Magnetic	Polyester Polyethylene Terephthalate (PET)	Nd-Fe-B	Receiver	30 mW	150 Ohms	Top	Solder Pads	26.8 mm	1.055 in	8 mm	0.315 in	119 dBA	Sound Pressure Level (SPL)	15 mW	1mW/10mm	Round	10 kHz	20 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Ohms Receiver Speaker 15 mW 20 Hz ~ 10 kHz Top Round
