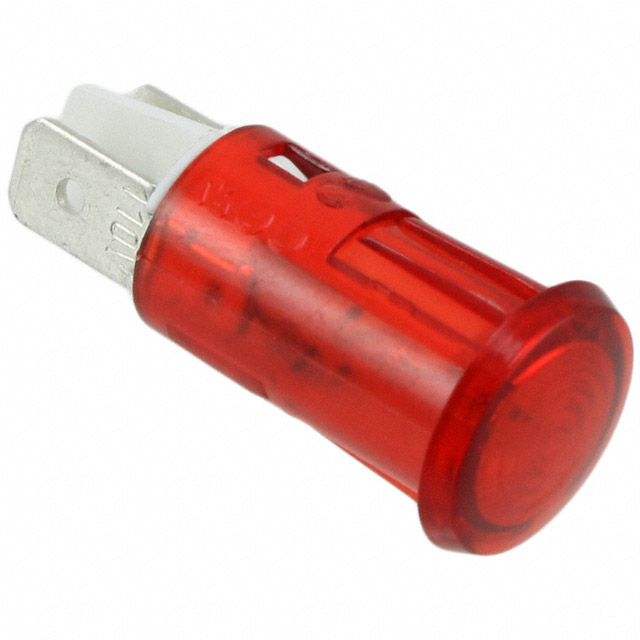

NL589C2R

Active

BULGIN LIMITED

LAMP NEON PNL MNT 125V RED

Search across all available documentation for this part.

Active

BULGIN LIMITED

LAMP NEON PNL MNT 125V RED

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Termination Style	Voltage [Max]	Voltage [Min]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Type	Lens Size [diameter]	Panel Cutout Shape	Lens Color	Lens Style	Voltage
BULGIN LIMITED NL589WL2G	Green	Wire Leads - 8" (203.20mm)	130 V	105 V	12.7 mm	0.5 in	Diffused	Neon	15.9 mm	Round	Green
BULGIN LIMITED NL589WL2A	Amber	Wire Leads - 8" (203.20mm)	130 V	105 V	12.7 mm	0.5 in	Diffused	Neon		Round	Amber	Round with Domed Top
BULGIN LIMITED NL589H3R	Red				12.7 mm	0.5 in	Diffused	Neon		Round	Red	Round with Domed Top	250 V
BULGIN LIMITED NL589C2G	Green	Quick Connect - 0.250" (6.3mm)	130 V	105 V	12.7 mm	0.5 in	Diffused	Neon	15.9 mm	Round	Green
BULGIN LIMITED NL589H3A	Amber				12.7 mm	0.5 in	Diffused	Neon		Round	Amber	Round with Domed Top	250 V
BULGIN LIMITED NL589WL3R-24	Red	Wire Leads - 8" (203.20mm)			12.7 mm	0.5 in	Diffused	Neon		Round	Red	Round with Domed Top	250 V
BULGIN LIMITED NL589C3G	Green				12.7 mm	0.5 in	Diffused	Neon		Round	Green	Round with Domed Top	250 V
BULGIN LIMITED NL589C2A	Amber	Quick Connect - 0.250" (6.3mm)	130 V	105 V	12.7 mm	0.5 in	Diffused	Neon	15.9 mm	Round	Amber
BULGIN LIMITED NL589C2R	Red	Quick Connect - 0.250" (6.3mm)	130 V	105 V	12.7 mm	0.5 in	Diffused	Neon	15.9 mm	Round	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Neon Panel Indicator Red Diffused 105V ~ 130V Quick Connect - 0.250" (6.3mm)
