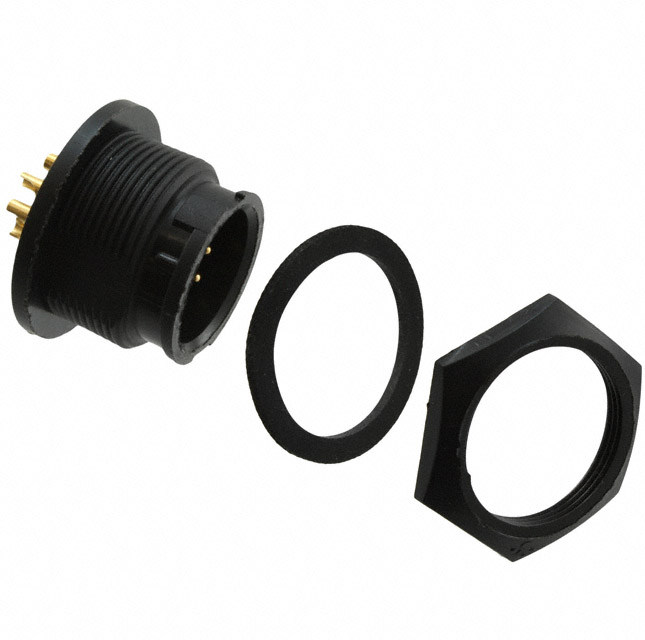

4280-7PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4280-7PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4280-7PG-300 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 5.6 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 7 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 6.58 | |
Description
General part information
4280-7P Series
7 Position Circular Connector Receptacle, Male Pins Crimp
Documents
Technical documentation and resources
