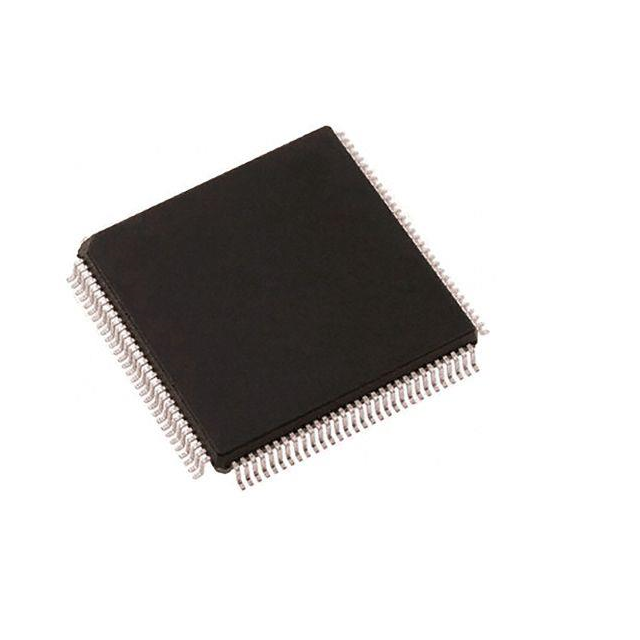

SN74ACT3651-20PBC

Active

Texas Instruments

IC FIFO 2KX36 11NS

Search across all available documentation for this part.

Active

Texas Instruments

IC FIFO 2KX36 11NS

Technical Specifications

Parameters and characteristics for this part

Specification	SN74ACT3651-20PBC

null

Part	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Data Rate	Expansion Type	Current - Supply (Max) [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Access Time	Bus Directional
Texas Instruments SN74ACT3651-20PQ	132-BQFP Bumpered	4.5 V	5.5 V	Surface Mount	Synchronous	70 °C	0 °C	72 K	50 MHz	Depth Width	400 µA	24.13	132-BQFP	24.13	13 ns	Bi-Directional
Texas Instruments SN74ACT3651-15PQ	132-BQFP Bumpered	4.5 V	5.5 V	Surface Mount	Synchronous	70 °C	0 °C	72 K	66.7 MHz	Depth Width	400 µA	24.13	132-BQFP	24.13	11 ns	Bi-Directional
Texas Instruments SN74ACT3651-20PCB	120-LQFP	4.5 V	5.5 V	Surface Mount	Synchronous	70 °C	0 °C	72 K	50 MHz	Depth Width	400 µA		120-HLQFP (14x14)		13 ns	Bi-Directional
Texas Instruments SN74ACT3651-20PBC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	19	$ 15.86

General part information

FIFO

Technical documentation and resources

No documents available
