FT2232H MINI MODULE

Active

FTDI, Future Technology Devices International Ltd

MOD USB HS FT2232H EVAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FT2232H MINI MODULE

Active

FTDI, Future Technology Devices International Ltd

MOD USB HS FT2232H EVAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FT2232H MINI MODULE

Contents	Board(s)
Embedded	False
Function	UART, SPI, I2C, JTAG, USB 2.0
Primary Attributes	High Speed, Asynch Serial Data
Primary Attributes [Max]	12 Mbaud
Primary Attributes [Min]	300 baud
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	FT2232H

FT2232 Series

Part	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Function	Current - Supply	Package / Case	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Voltage - Supply	Supplied Contents	Primary Attributes	Primary Attributes [Min]	Primary Attributes [Max]	Utilized IC / Part	Type	Contents
FTDI, Future Technology Devices International Ltd FT2232HQ-REEL	USB	85 °C	-40 °C	USB 2.0	Bridge FIFO USB to UART	70 mA	64-VFQFN Exposed Pad	UART	3.6 V	3 V	64-QFN (9x9)
FTDI, Future Technology Devices International Ltd FT2232H-56Q-TRAY	USB	85 °C	-40 °C	USB 2.0	Bridge FIFO USB to UART		56-VFQFN Exposed Pad	FIFO UART			56-VQFN (8x8)	3.3 V
FTDI, Future Technology Devices International Ltd FT2232HL-TRAY	USB	85 °C	-40 °C	USB 2.0	Bridge FIFO USB to UART	70 mA	64-LQFP	UART	3.6 V	3 V	64-LQFP (10x10)
FTDI, Future Technology Devices International Ltd FT2232HQ-TRAY	USB	85 °C	-40 °C	USB 2.0	Bridge FIFO USB to UART	70 mA	64-VFQFN Exposed Pad	UART	3.6 V	3 V	64-QFN (9x9)
FTDI, Future Technology Devices International Ltd FT2232H-56Q MINI MDL	USB	85 °C	-40 °C	USB 2.0	Controller		Module	FIFO			Module
FTDI, Future Technology Devices International Ltd FT2232H MINI MODULE					I2C JTAG SPI UART USB 2.0								Board(s)	Asynch Serial Data High Speed	300 baud	12 Mbaud	FT2232H	Interface	Board(s)
FTDI, Future Technology Devices International Ltd FT2232H-56Q-REEL	USB	85 °C	-40 °C	USB 2.0	Bridge FIFO USB to UART		56-VFQFN Exposed Pad	FIFO UART			56-VQFN (8x8)	3.3 V
FTDI, Future Technology Devices International Ltd FT2232D-REEL	USB	85 °C	-40 °C	USB 2.0	Bridge USB to UART	30 mA	48-LQFP	UART	5.25 V	4.35 V	48-LQFP (7x7)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.30
		10	$ 29.00

Description

General part information

FT2232 Series

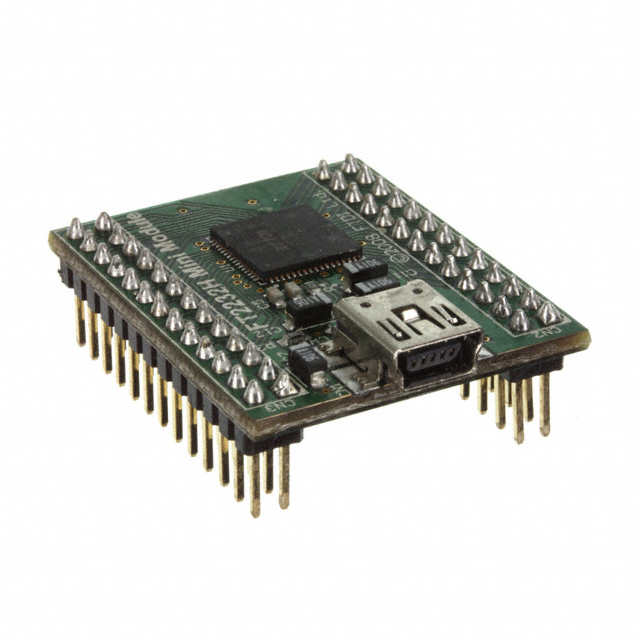

FT2232H - USB 2.0 to I2C, JTAG, SPI, UART Interface Evaluation Board
