74AUP1T97UKAZ

Obsolete

Freescale Semiconductor - NXP

IC TRANSLATOR UNIDIR 6WLCSP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC TRANSLATOR UNIDIR 6WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1T97UKAZ

Channel Type	Unidirectional
Channels per Circuit	1
Features	Configurable Gate Logic Functions
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Single-Ended
Package / Case	WLCSP, 6-XFBGA
Supplier Device Package	6-WLCSP
Supplier Device Package [x]	0.65
Supplier Device Package [y]	0.44
Translator Type	Voltage Level
Voltage - VCCA [Max] [custom]	2.7 V
Voltage - VCCA [Min] [custom]	1.8 V
Voltage - VCCB [Max]	3.6 V
Voltage - VCCB [Min]	2.3 V

Part	Voltage - VCCA [Max] [custom]	Voltage - VCCA [Min] [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Translator Type	Mounting Type	Channel Type	Number of Circuits	Channels per Circuit	Output Type	Supplier Device Package	Package / Case	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Supplier Device Package [x]	Supplier Device Package [y]
Freescale Semiconductor - NXP 74AUP1T97GW,125	2.7 V	1.8 V	125 °C	-40 °C	Configurable Gate Logic Functions	Voltage Level	Surface Mount	Unidirectional	1	1	Single-Ended	6-TSSOP	6-TSSOP SC-88 SOT-363	3.6 V	2.3 V
Freescale Semiconductor - NXP 74AUP1T97GN,132	2.7 V	1.8 V	125 °C	-40 °C	Configurable Gate Logic Functions	Voltage Level	Surface Mount	Unidirectional	1	1	Single-Ended	6-XSON	6-XFDFN	3.6 V	2.3 V	0.9	1
Freescale Semiconductor - NXP 74AUP1T97GS,132	2.7 V	1.8 V	125 °C	-40 °C	Configurable Gate Logic Functions	Voltage Level	Surface Mount	Unidirectional	1	1	Single-Ended	6-XSON SOT1202 (1x1)	6-XFDFN	3.6 V	2.3 V
Freescale Semiconductor - NXP 74AUP1T97GM,132	2.7 V	1.8 V	125 °C	-40 °C	Configurable Gate Logic Functions	Voltage Level	Surface Mount	Unidirectional	1	1	Single-Ended	6-XSON SOT886 (1.45x1)	6-XFDFN	3.6 V	2.3 V
Freescale Semiconductor - NXP 74AUP1T97GM,115			125 °C	-40 °C			Surface Mount		1		Single-Ended	6-XSON SOT886 (1.45x1)	6-XFDFN
Freescale Semiconductor - NXP 74AUP1T97UKAZ	2.7 V	1.8 V	125 °C	-40 °C	Configurable Gate Logic Functions	Voltage Level	Surface Mount	Unidirectional	1	1	Single-Ended	6-WLCSP	6-XFBGA WLCSP	3.6 V	2.3 V	0.65	0.44

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

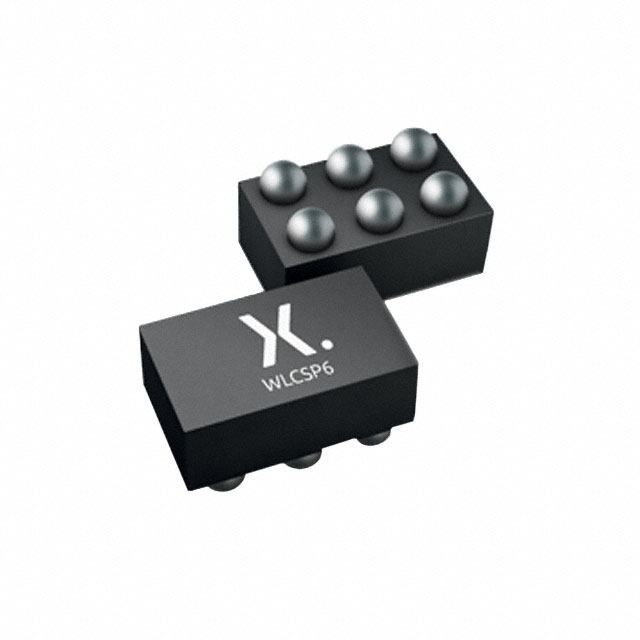

Voltage Level Translator Unidirectional 1 Circuit 1 Channel 6-WLCSP (0.65x0.44)
