917-83-210-41-005101

Active

PRECI-DIP SA

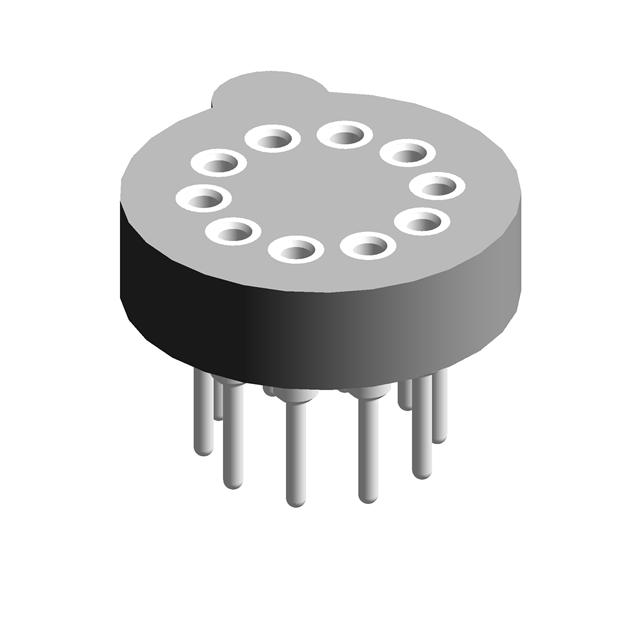

CONN TRANSIST TO-5 10POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

917-83-210-41-005101

Active

PRECI-DIP SA

CONN TRANSIST TO-5 10POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	917-83-210-41-005101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	Transistor, TO-5

917-83 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Type	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Termination	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Contact Material - Post [custom]	Contact Resistance	Material Flammability Rating	Contact Finish - Mating	Contact Material - Mating
PRECI-DIP SA 917-83-108-41-053101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	8	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-208-41-005101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	8	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-103-41-053101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	3	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-208-41-053101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	8	29.5 Áin	0.75 Ám	0.055 in	1.4 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-103-41-005101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	3	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-104-41-005101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	4	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper
PRECI-DIP SA 917-83-210-41-005101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Transistor TO-5	Through Hole	1 A	Tin	Solder	10	29.5 Áin	0.75 Ám	0.125 in	3.18 mm	Brass	10 mOhm	UL94 V-0	Gold	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1320	$ 1.62

Description

General part information

917-83 Series

10 (Round) Pos Transistor, TO-5 Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
