1415106

Active

Phoenix Contact

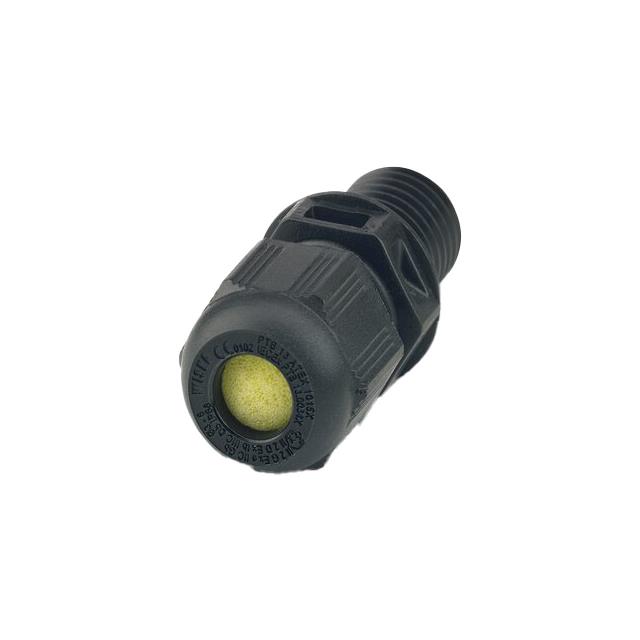

CABLE GLAND 3-6MM M12 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6MM M12 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1415106

Color	Black
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M12
Type	Cable Gland

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1415123	0.472 in	12 mm	0.157 in	4 mm	Cable Gland	M12	-40 °C	75 ░C	IP66/IP68	Silver	7 mm	0.276 in	Brass Nickel Plated	O-Ring Seal
Phoenix Contact 1415106	0.591 in	15 mm			Cable Gland	M12	-40 °C	75 ░C	IP66/IP68	Black	6 mm	0.236 in	Polyamide (PA) Nylon	Seal	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.12

General part information

Cable Gland Polyamide (PA), Nylon M12 Black
