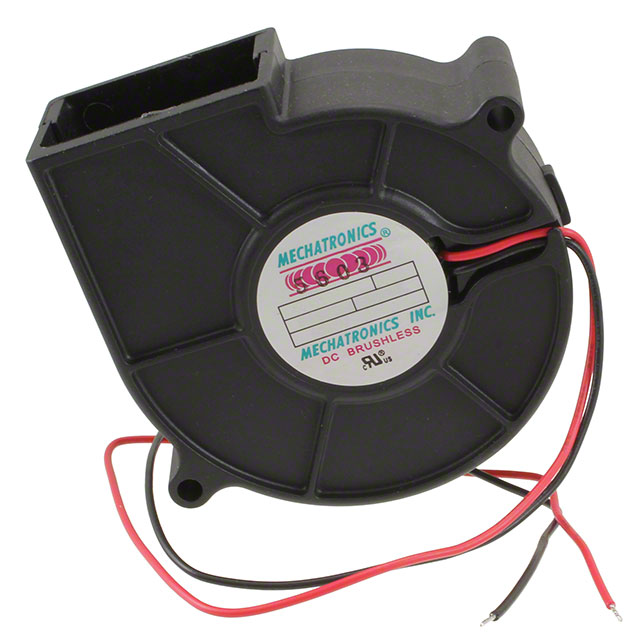

B7530E24B-BSR

Active

Mechatronics Bearing Group

FAN BLOWER 76X30MM 24VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLOWER 76X30MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	B7530E24B-BSR

Air Flow	13.5 CFM
Air Flow	0.378 m³/min
Approval Agency	cUL, UL, CE
Bearing Type	Ball
Fan Type	Blower
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	45 dB(A)
RPM	3800 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	76 mm
Size / Dimension [z]	76 mm
Static Pressure	0.71 in H2O
Static Pressure	176.9 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.192 lb
Weight	87.08 g
Width [y]	30 mm

Part	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Voltage - Rated	Noise	Features	Air Flow	Air Flow	Width [y]	Approval Agency	Static Pressure	Static Pressure	Material - Blade	Weight	Weight	Termination	RPM	Bearing Type	Fan Type
Mechatronics Bearing Group B7530E24B-BSR	76 mm	Square/Rounded	76 mm	24 VDC	45 dB(A)	Thermal Overload Protector (TOP)	13.5 CFM	0.378 m³/min	30 mm	CE cUL UL	0.71 in H2O	176.9 Pa	Polybutylene Terephthalate (PBT)	0.192 lb	87.08 g	2 Wire Leads	3800 RPM	Ball	Blower

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 76mm L x 76mm H Ball 13.5 CFM (0.378mł/min) 2 Wire Leads
