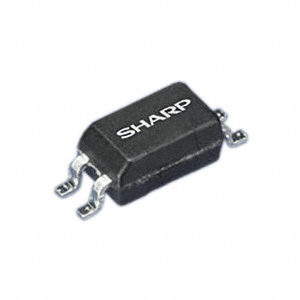

S2S5FA0F
ActiveSHARP/Socle Technology
PHOTOTRIAC COUPLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S2S5FA0F
ActiveSHARP/Socle Technology
PHOTOTRIAC COUPLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S2S5FA0F |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Hold (Ih) | 3.5 mA |
| Current - On State (It (RMS)) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | Triac |
| Package / Case | 4-SOIC |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Static dV/dt (Min) [Min] | 500 V/µs |
| Supplier Device Package | 4-SMD |
| Voltage - Isolation | 3750 Vrms |
| Voltage - Off State | 600 V |
| Zero Crossing Circuit | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 60000 | $ 0.29 | |
Description
General part information
S2S5FA0 Series
Optoisolator Triac Output 3750Vrms 1 Channel 4-SMD
