VER24US240-JA

Active

XP POWER

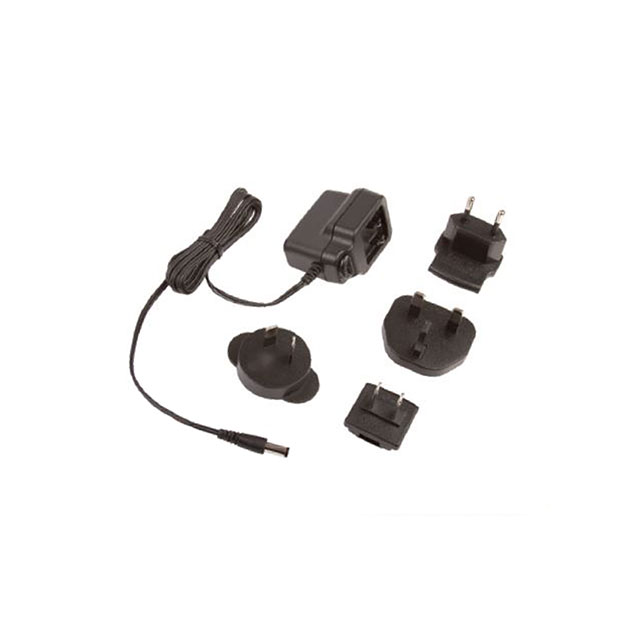

AC/DC WALL MOUNT ADAPTER 24V 24W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 24V 24W

Technical Specifications

Parameters and characteristics for this part

Specification	VER24US240-JA

Applications	ITE (Commercial)
Approval Agency	CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	International
Size / Dimension [x]	3.54 in
Size / Dimension [x]	90 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	1.68 "
Size / Dimension [z]	42.7 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V
Weight	0.177 lb
Weight	80.29 g

Part	Region Utilized	No Load Power Consumption [Max]	Weight	Weight	Polarization	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Form	Applications	Power (Watts)	Cord Length	Cord Length	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Input Type	Approval Agency	Voltage - Output	Current - Output (Max) [Max]
XP POWER VER24US120-JA	International	75 mW	0.177 lb	80.29 g	Positive Center	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Barrel Plug	2.1 mm 5.5 mm	12 mm	60 °C	0 °C	Multi-Blade	Wall Mount (Class II)	ITE (Commercial)	24 W	1.5 m	59 in	Level VI	90 VAC	264 VAC	62368-1	Multi-Blade (Included)	CB	12 V	2 A
XP POWER VER24US240-JA	International	75 mW	0.177 lb	80.29 g	Positive Center	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Barrel Plug	2.1 mm 5.5 mm	12 mm	60 °C	0 °C	Multi-Blade	Wall Mount (Class II)	ITE (Commercial)	24 W	1.5 m	59 in	Level VI	90 VAC	264 VAC	62368-1	Multi-Blade (Included)	CB	24 V	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
