UF5402-TP

Obsolete

Micro Commercial Components

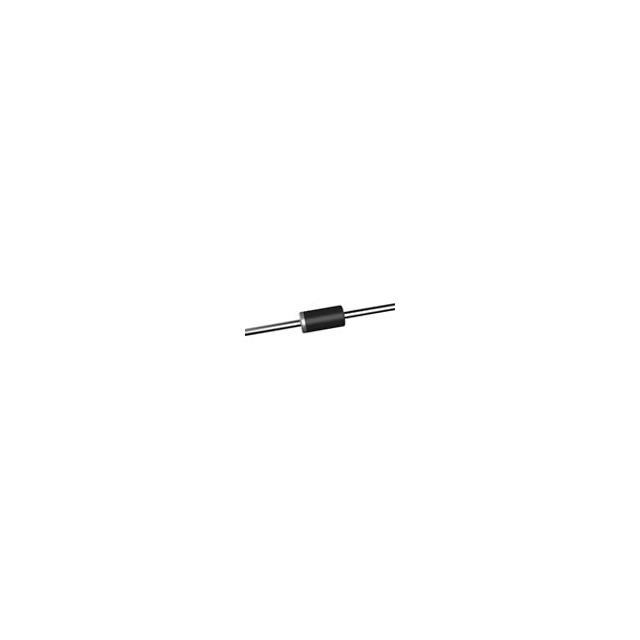

DIODE GEN PURP 200V 3A DO201AD

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

DIODE GEN PURP 200V 3A DO201AD

Technical Specifications

Parameters and characteristics for this part

Specification	UF5402-TP

Capacitance @ Vr, F	75 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-201AD, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-201AD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Current - Average Rectified (Io)	Supplier Device Package	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Package / Case	Voltage - Forward (Vf) (Max) @ If
Micro Commercial Components UF5402GP-AP	950 mV	Standard	10 µA	150 °C	-55 °C	200 V	Through Hole	200 mA 500 ns	3 A	DO-201AD	75 pF	50 ns	DO-201AD Axial
Micro Commercial Components UF5402GP-AP	950 mV	Standard	10 µA	150 °C	-55 °C	200 V	Through Hole	200 mA 500 ns	3 A	DO-201AD	75 pF	50 ns	DO-201AD Axial
Micro Commercial Components UF5402GP-BP	950 mV	Standard	10 µA	150 °C	-55 °C	200 V	Through Hole	200 mA 500 ns	3 A	DO-201AD	75 pF	50 ns	DO-201AD Axial
Micro Commercial Components UF5402-TP		Standard	10 µA	150 °C	-55 °C	200 V	Through Hole	200 mA 500 ns	3 A	DO-201AD	75 pF	50 ns	DO-201AD Axial	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 200 V 3A Through Hole DO-201AD
