16SVPS100M

Active

Panasonic Industrial Automation Sales

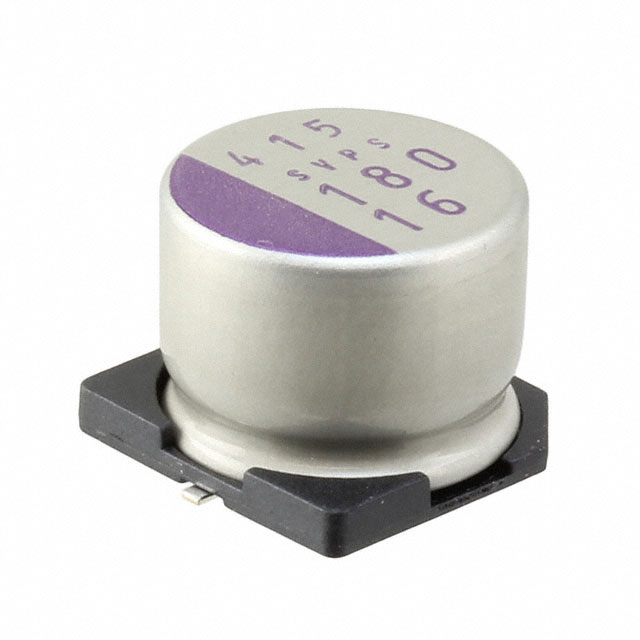

CAP ALUM POLY 100UF 20% 16V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 100UF 20% 16V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	16SVPS100M

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	35 mOhms
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.67 A
Ripple Current @ Low Frequency	133.5 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.406 in
Surface Mount Land Size [x]	10.3 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Voltage - Rated	Ripple Current @ Low Frequency	Mounting Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 16SVPS82M	7 mm	0.276 "	Polymer	0.327 "	8.3 mm	0.327 in	8.3 mm	5000 Hrs	16 V	138 mA	Surface Mount	20 %	0.315 "	8 mm	Radial Can - SMD	General Purpose	105 ░C	-55 °C	82 µF	2.76 A	30 mOhms
Panasonic Industrial Automation Sales 16SVPS39M	6 mm	0.236 in	Polymer	0.26 in	6.6 mm	0.26 in	6.6 mm	5000 Hrs	16 V	123 mA	Surface Mount	20 %	0.248 in	6.3 mm	Radial Can - SMD	General Purpose	105 ░C	-55 °C	39 µF	2.46 A	24 mOhms
Panasonic Industrial Automation Sales 16SVPS100M			Polymer	0.406 in	10.3 mm	0.406 "	10.3 mm	5000 Hrs	16 V	133.5 mA	Surface Mount	20 %	0.394 in	10 mm	Radial Can - SMD	General Purpose	105 ░C	-55 °C	100 µF	2.67 A	35 mOhms	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 5000 Hrs @ 105°C
