11123000114

LTB

HARTING Technology Group

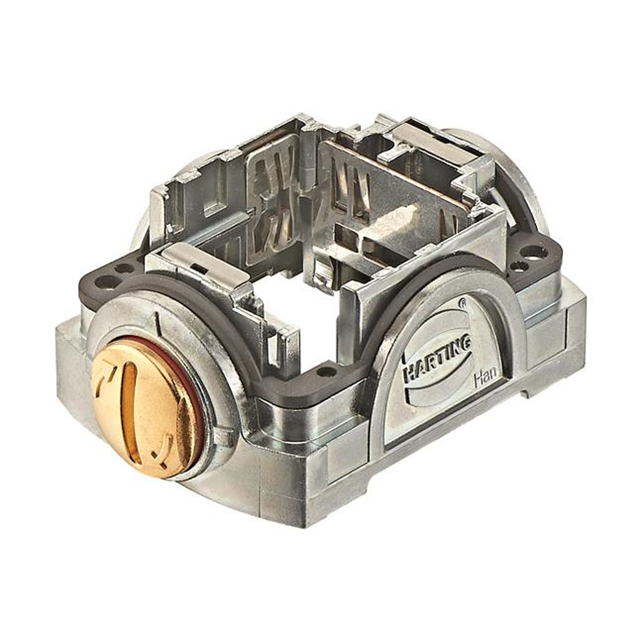

HAN-YELLOCK 30-CARRIER HOOD PUSH

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN-YELLOCK 30-CARRIER HOOD PUSH

Technical Specifications

Parameters and characteristics for this part

Specification	11123000114

Connector Type	Hood - Carrier
Housing Color	Silver
Housing Material	Zinc Die Cast
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Housing Material	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Ingress Protection	Housing Finish	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color
HARTING Technology Group 11123000301	Zinc Die Cast	Push Button Snap Lock on Hood Carrier	74.5 mm	2.933 "	56 mm	23.4 mm	2.205 in	0.921 "	Base - Panel Mount	IP65 IP67	Zinc Passivation	Bottom Entry	125 °C	-40 °C
HARTING Technology Group 11123000302	Zinc Die Cast	Push Button Snap Lock on Hood Carrier	74.5 mm	2.933 "	56 mm	23.4 mm	2.205 in	0.921 "	Base - Panel Mount	IP65 IP67	Zinc Passivation	Bottom Entry	125 °C	-40 °C
HARTING Technology Group 11123000114	Zinc Die Cast	Push Button Snap Lock on Hood Carrier							Hood - Carrier	IP65 IP67			125 °C	-40 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.46

General part information

Hood - Carrier Connector IP65/IP67 - Dust Tight, Water Resistant, Waterproof

Technical documentation and resources
