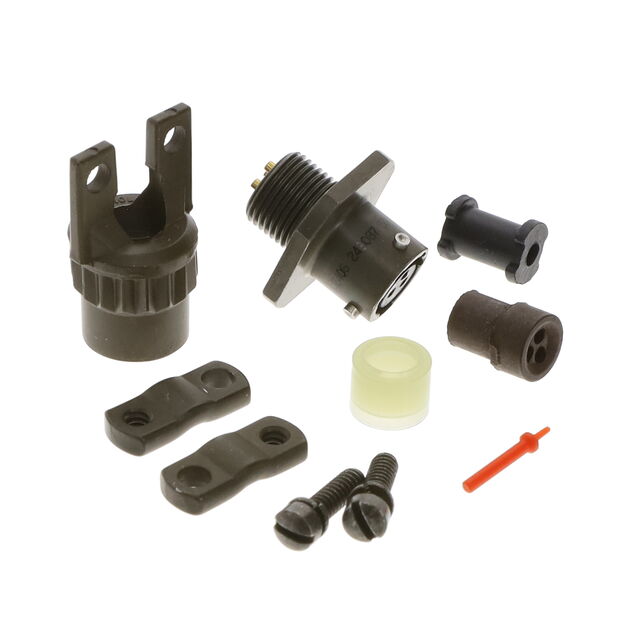

MS3111F8-3S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3111F8-3S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-3
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Primary Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Material	Connector Type	Shell Finish	Contact Material	Features	Grade	Orientation	Qualification	Mounting Type	Number of Positions	Color	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Applications	Fastening Type	Shielding	Voltage Rating	Current Rating (Amps)
Amphenol Industrial Operations MS3111F8-4S	Metal	Aluminum Olive Drab Chromate over Cadmium	-55 °C	125 °C	Neoprene	Aluminum	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Copper Alloy	Backshell Cable Clamp	Military	N	MIL-DTL-26482 Series I	Free Hanging (In-Line)	4	Olive Drab	Gold	8-4	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	Unshielded
Amphenol Industrial Operations MS3111F8-3S	Metal		-55 °C	125 °C	Neoprene	Aluminum	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Copper Alloy	Backshell Cable Clamp	Military	N	MIL-DTL-26482 Series I	Free Hanging (In-Line)		Olive Drab	Gold	8-3	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	Unshielded	600 VAC	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
